2020 Case 580N EP

📍 USAStock #:EQ001104Show on map
Share

1,600 hrs

Backhoes

Used

Has AC

No

Has Heat

No

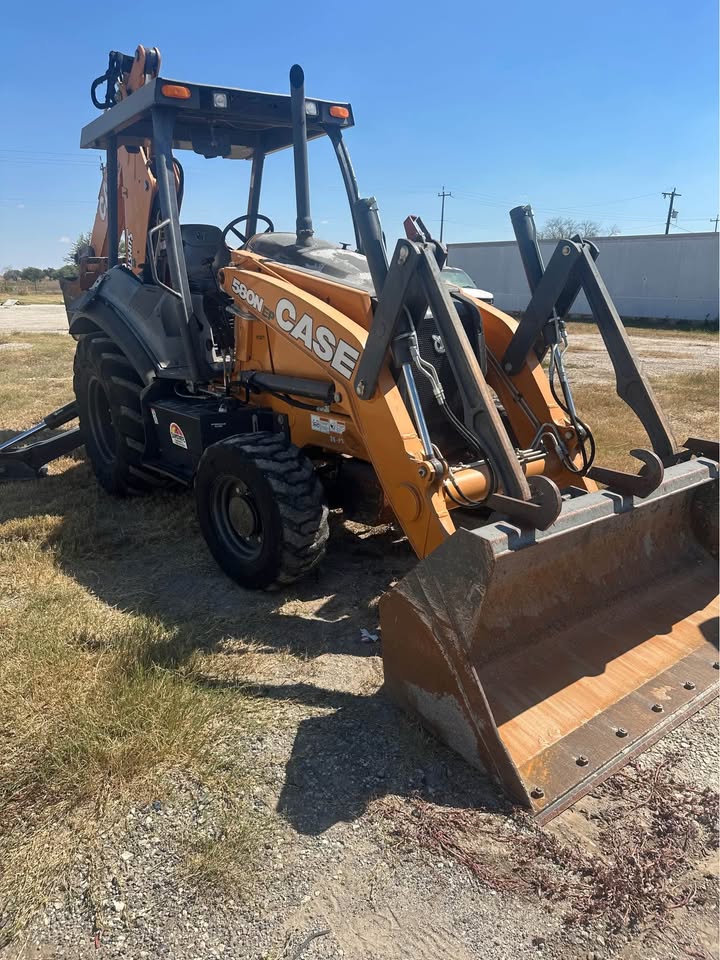

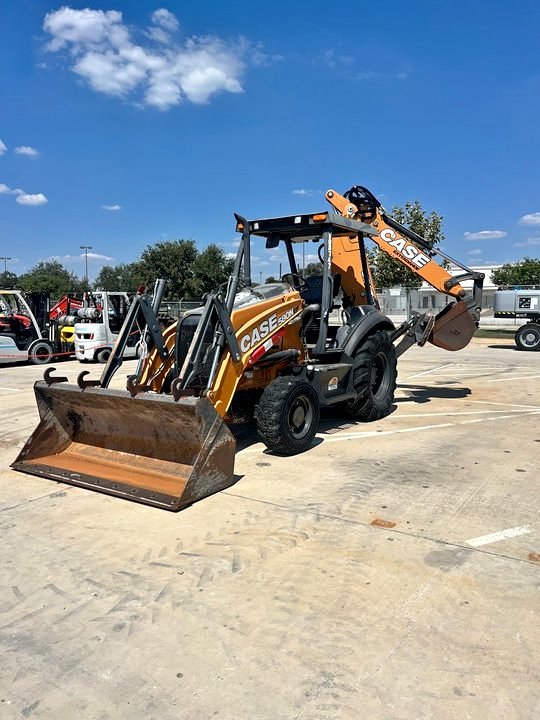

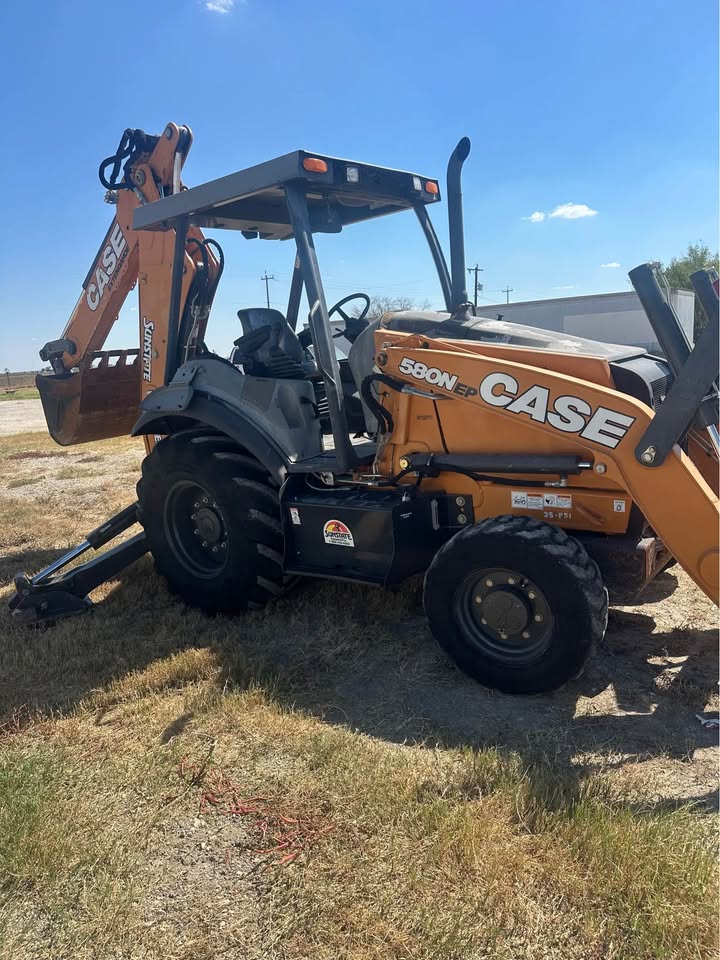

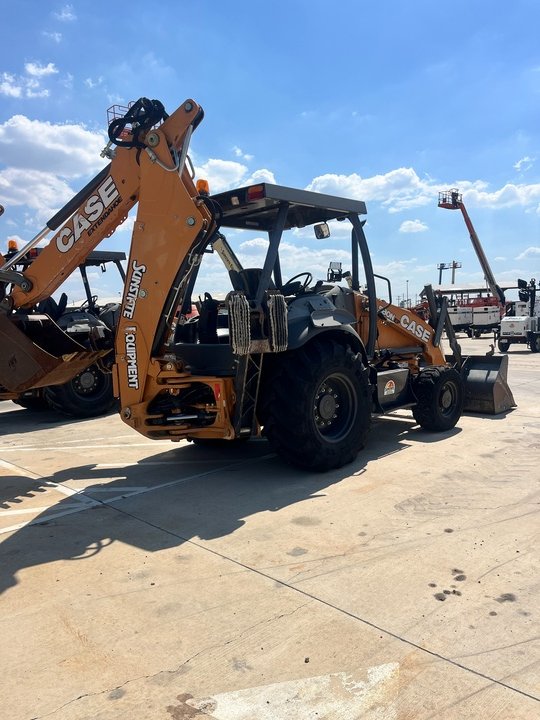

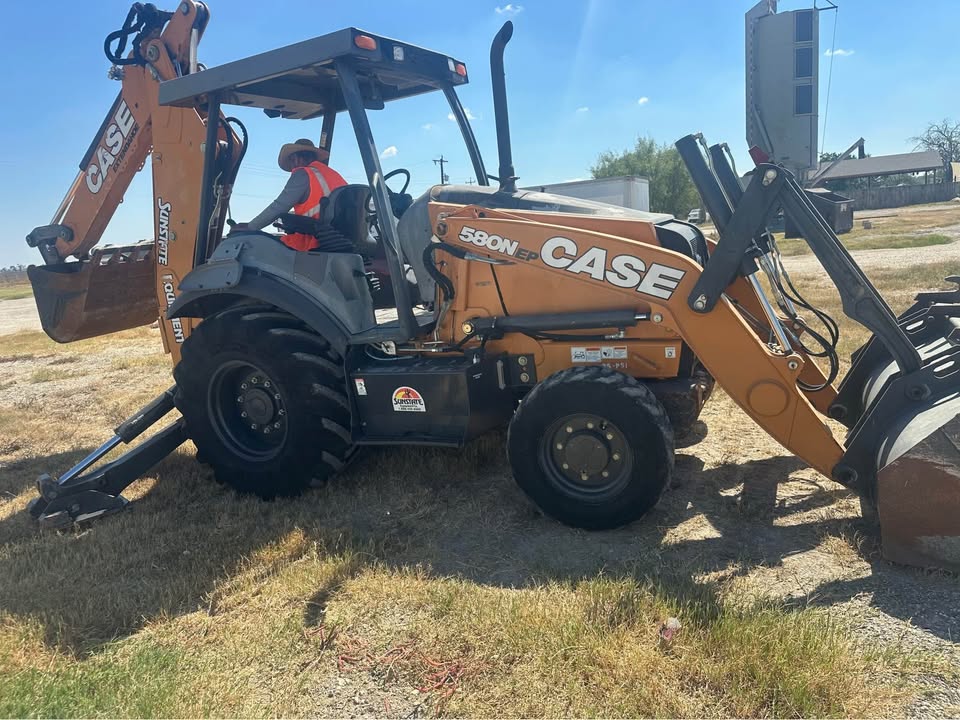

2020 Case 580N EP Backhoe Loader

This ex-rental, one-owner 2020 Case 580N EP has been immaculately maintained and includes complete maintenance records. With only 1,600 original hours, this unit runs strong, looks sharp, and is ready for immediate work.

Equipped with 4-wheel drive for dependable traction and an Extendahoe for added digging depth. The Tier 4 Final FPT diesel engine is fully California compliant with no DEF or DPF required — low maintenance, reliable, and fuel-efficient.

Key Highlights

  • 2020 Model Year
  • Ex-rental, one owner
  • Full service history – immaculately maintained
  • 4x4 Power Shuttle transmission
  • Extendahoe with 18’6” dig depth
  • Only 1,600 hours
  • Tier 4 Final (California compliant)
  • Tight, clean, and fully work-ready

Engine

  • Make: FPT F5HFL463D – 4-cylinder turbo diesel
  • Emissions: Tier 4 Final (DOC only, no DPF/DEF)
  • Displacement: 3.4 L (207 cu in)
  • Gross Power: 74 hp (55 kW) @ 2200 rpm
  • Net Power: 68 hp (51 kW)
  • Max Torque: 233 lb-ft @ 1400 rpm

Transmission

  • Type: Power Shuttle, Synchromesh
  • Gears: 4 forward / 4 reverse
  • Drive: 4x4
  • Max Travel Speed: 25.5 mph (41 km/h)

Hydraulics

  • Pump Type: Gear pump
  • Flow: 28.6 gal/min (108 L/min)
  • System Pressure: 3350 psi (231 bar)

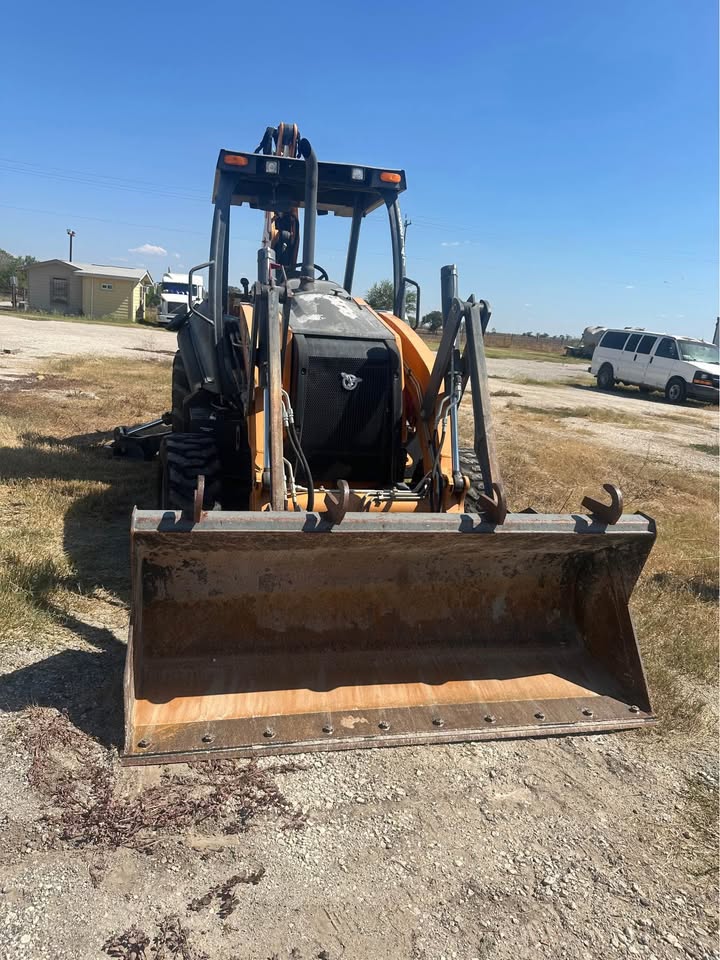

Loader

  • Lift Capacity: 6,500 lb (2,950 kg)
  • Breakout Force: 9,600 lb (4,358 kg)
  • Dump Height: 8 ft 8 in (2.64 m)
  • Bucket Width: 82 in (2.08 m)
  • Bucket Capacity: 1.0 yd³ (0.76 m³)

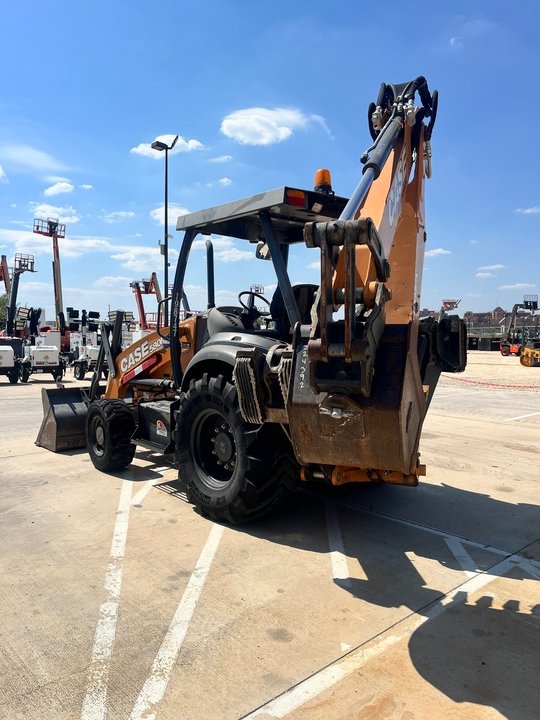

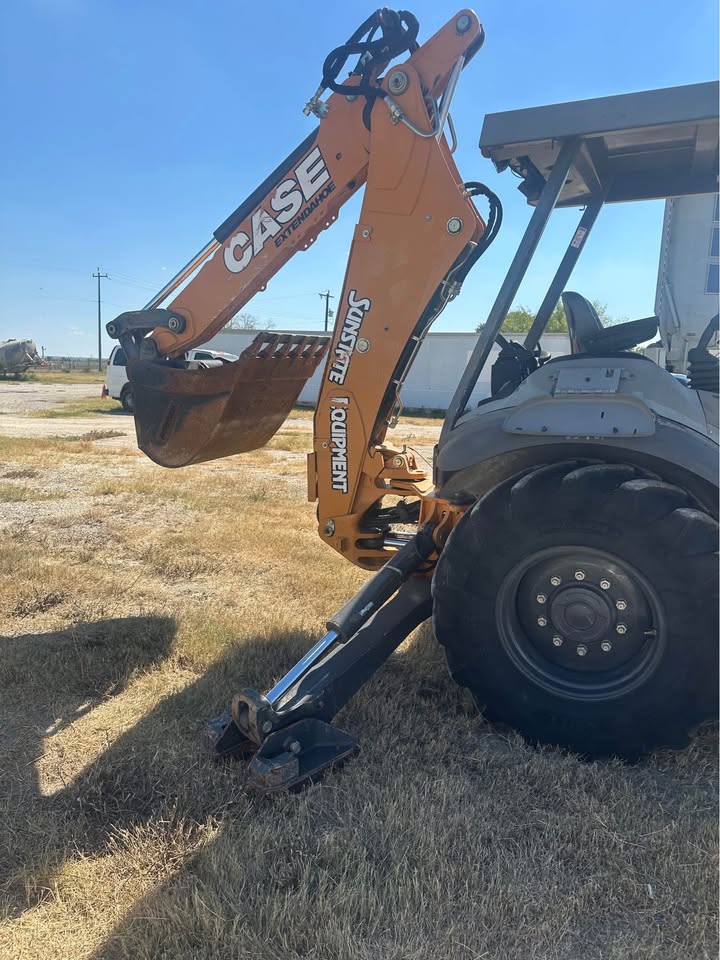

Backhoe

  • Type: Extendahoe
  • Max Dig Depth: 18 ft 6 in (5.63 m)
  • Max Reach: 22 ft 9 in (6.93 m)
  • Bucket Breakout: 11,517 lb (5,224 kg)
  • Swing Arc: 180 degrees

Dimensions and Weight

  • Length: 23 ft 0 in (7.01 m)
  • Width: 7 ft 1 in (2.17 m)
  • Height: 10 ft 10 in (3.30 m)
  • Operating Weight: 15,795 lb (7,164 kg)

Capacities

  • Fuel: 30.2 gal (114 L)
  • Hydraulic Oil: 15.9 gal (60 L)
  • Cooling System: 4.2 gal (16 L)
  • Engine Oil: 2.6 gal (10 L)

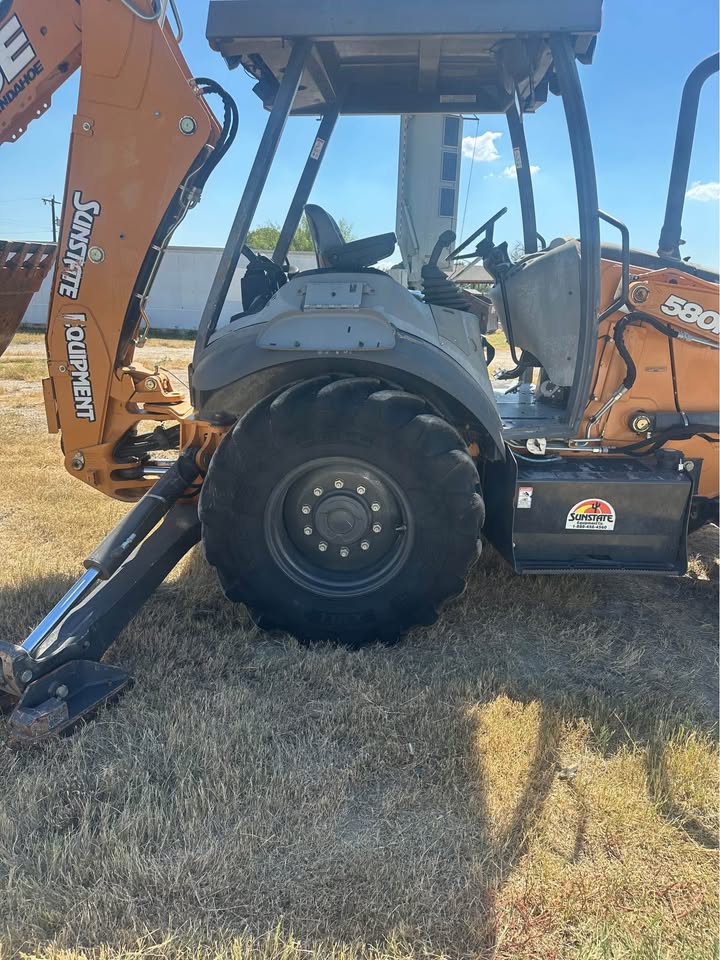

Tires

  • Front: 12.5/80-18 (4WD)
  • Rear: 19.5L-24

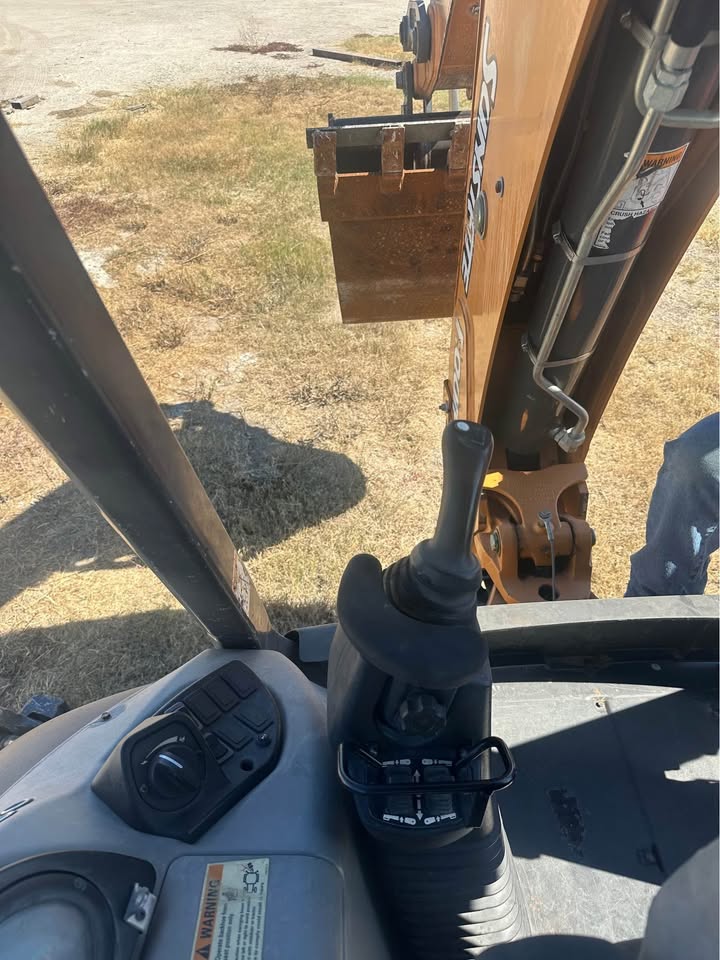

Operator Station

  • ROPS/FOPS certified cab or canopy

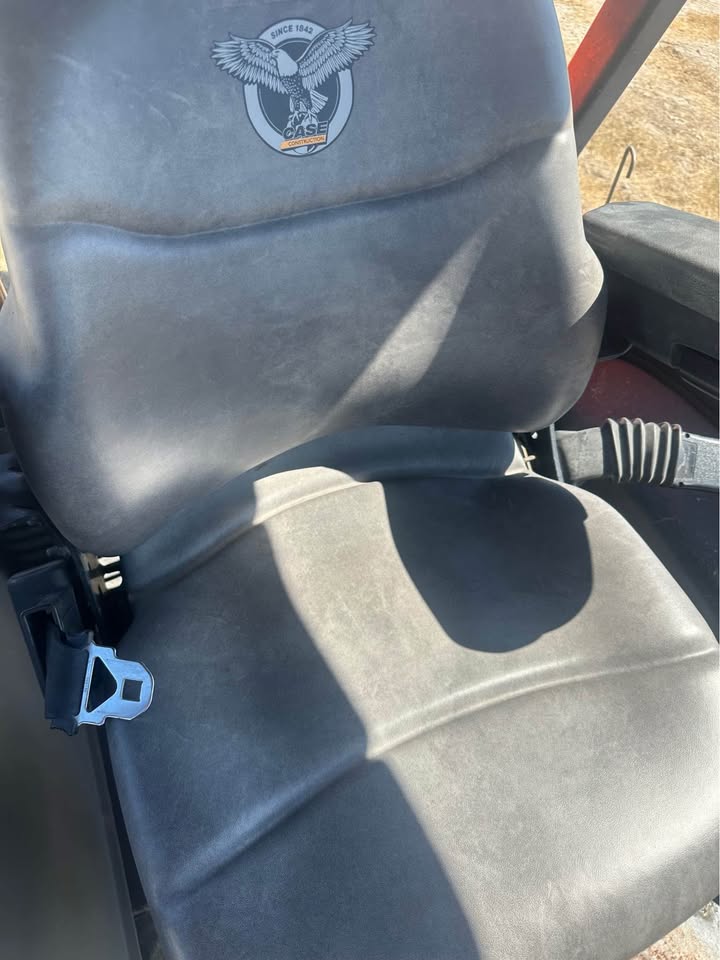

  • Suspension seat, adjustable steering
  • Optional A/C and heater

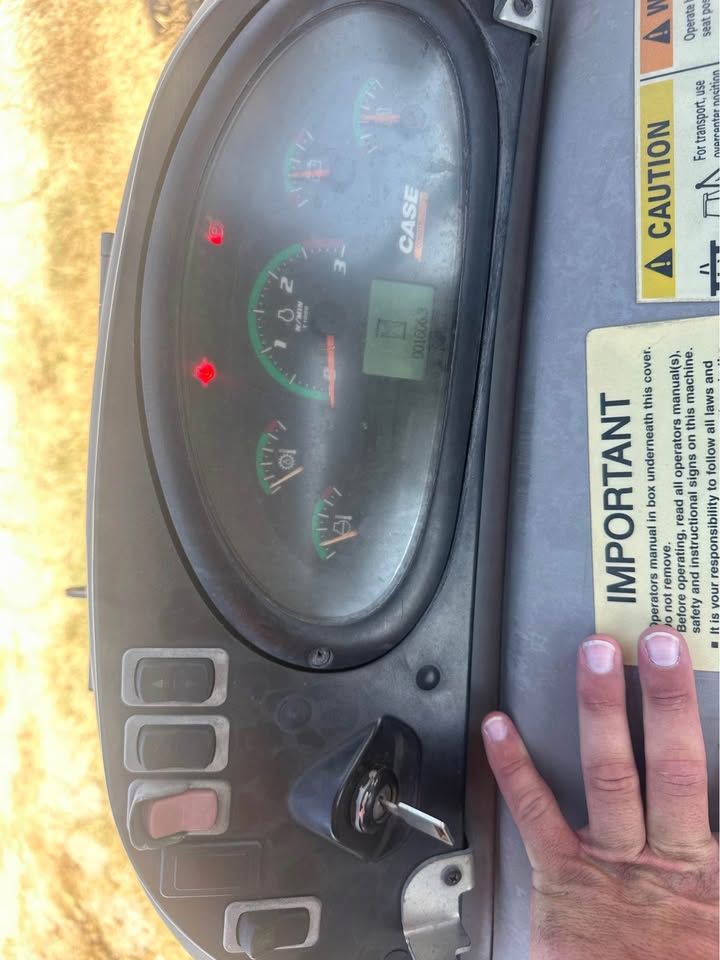

  • Full analog/digital instrumentation
  • Logistics coordination when applicable
  • Shipping available
  • Inspection report available
  • Dedicated sales agent

Can I review inspection photos and a condition report before I buy?

Yes. Listings include detailed photos and, when available, an inspection or condition summary so you can see wear, leaks, undercarriage, and cab condition. Ask your representative for the latest meter reading and any service records the seller can provide—hours and condition are often verified at listing time but can change.

Do you arrange shipping or delivery?

Shipping and logistics are often available nationwide through vetted transport partners. Cost depends on distance, dimensions, weight, and whether the machine is running and load-ready. Your sales representative can quote options and timing; pickup at the equipment location may also be arranged where allowed.

How accurate is the hour meter, and can I verify it?

Published hours reflect the last reported reading on the machine or in available documentation. Meters can be replaced or incorrect; we recommend confirming hours with your own inspection or a qualified technician before purchase. Ask whether an ECM or telematics readout is available for your unit.

Is the machine sold as-is, and is there a warranty?

Used heavy equipment is often sold as-is, where-is, unless a separate written warranty or service plan is offered on your specific deal. Remaining manufacturer or extended coverage, if any, may be transferable—confirm in writing. Always review the purchase agreement and inspection terms before committing.

What paperwork should I expect (title, lien release, export)?

Expect a bill of sale and any title or ownership documents required in your state or country. If the unit was financed, ensure lien release is documented. For export, additional customs, EPA, or certification paperwork may apply—your representative can flag what is needed for your destination.

Pricing

Asking price
Contact for pricing

Eligible businesses may reduce taxable income faster by depreciating qualifying equipment in the year it is placed in service (rules vary by entity and tax year). This is not tax advice—the figure below is an illustrative savings estimate only; consult your accountant.

💡 Want to see your estimated tax savings and monthly payments?

Status: available

Price excludes taxes, fees, and shipping unless noted. Contact your representative for availability and inspections.
