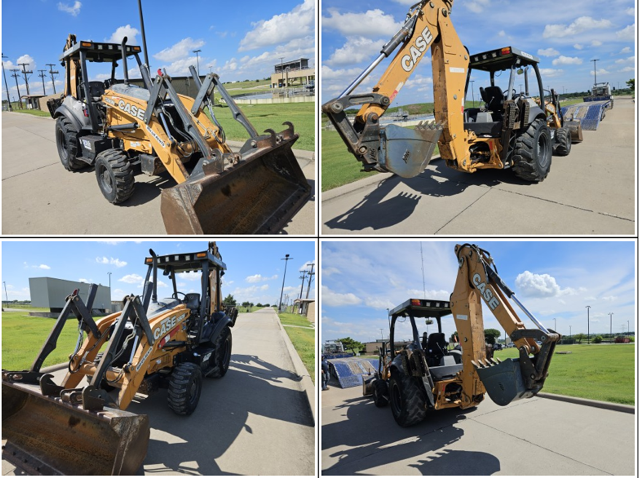

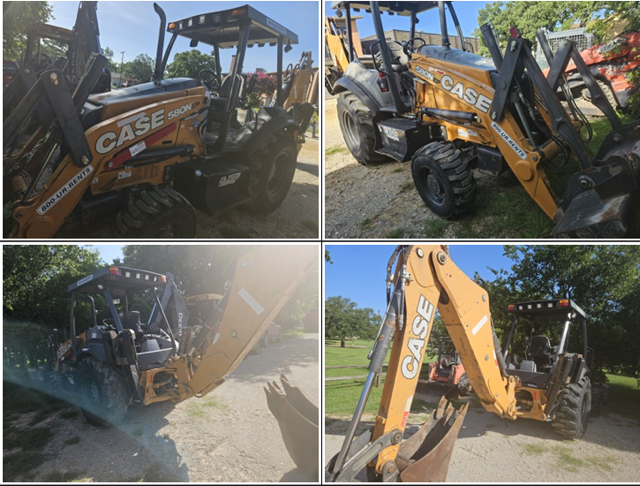

2019 Case 580N EP Backhoe Loader

Clean, reliable, and ready for work, this 2019 Case 580N EP delivers the power and performance you expect from Case in a fuel-efficient low emissions package. Equipped with a dependable FPT diesel engine and powershift transmission, this machine offers smooth operation and strong breakout force for digging, loading, and site prep.

Engine

• Make: FPT (Fiat Powertrain Technologies)
• Model: F5HFL413E
• Type: 4-cylinder, turbocharged diesel
• Net Power: 74 HP (55 kW)
• Gross Power: 78 HP (58 kW)
• Displacement: 3.4 L (207 cu in)
• Fuel System: Common rail, electronic fuel injection
• Emissions: Tier 4 Final (no DEF required - California compliance)

Performance

• Maximum Travel Speed: 22 mph (36 km/h)
• Loader Breakout Force: 11,517 lb (5,223 kg)
• Backhoe Bucket Breakout Force: 11,229 lb (5,093 kg)
• Backhoe Dipper Stick Force: 7,969 lb (3,615 kg)
• Hydraulic Pump Flow: 28.5 gal/min (108 L/min)
• System Pressure: 3,046 psi (21,000 kPa)

Operating Weight

• 4WD Operating Weight: 15,800 lb (7,167 kg)

Transmission

• Type: Powershift transmission
• Speeds: 4 forward / 4 reverse
• Differential Lock: Electric foot switch control

Hydraulics

• Type: Open-center, gear-type
• Pump Capacity: 28.5 gal/min (108 L/min)
• System Relief Pressure: 3,046 psi (21,000 kPa)

Loader Specifications

• Bucket Capacity: 1.0 cu yd (0.76 m³)
• Maximum Lift Capacity: 7,327 lb (3,323 kg)
• Hinge Pin Height: 11 ft 1 in (3.38 m)
• Dump Clearance at Full Height: 8 ft 8 in (2.64 m)

Backhoe Specifications

• Standard Dig Depth: 14 ft 4 in (4.37 m)
• Loading Height: 11 ft 3 in (3.43 m)
• Swing Arc: 180°

Dimensions

• Overall Transport Length: 23 ft 2 in (7.06 m)
• Width (with bucket): 7 ft 2 in (2.18 m)
• Height to Top of Cab: 9 ft 0 in (2.74 m)
• Wheelbase: 7 ft 1 in (2.16 m)
• Ground Clearance: 1 ft 1 in (0.33 m)

Capacities

• Fuel Tank: 31 gal (117 L)
• Hydraulic Fluid: 28 gal (106 L)
• Cooling System: 4.5 gal (17 L)
• Engine Oil: 2.6 gal (9.8 L)
