2015 Caterpillar 140M3 AWD

📍 USAStock #:EQ000907Show on map
Share

6,500 hrs

Motor Graders

Used

Has AC

No

Has Heat

No

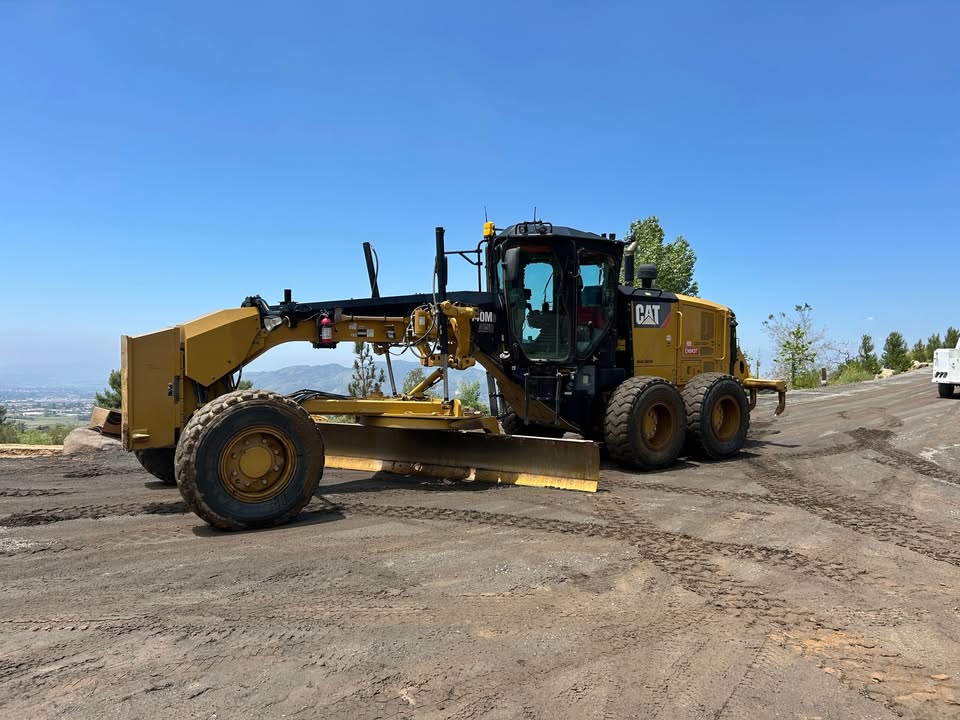

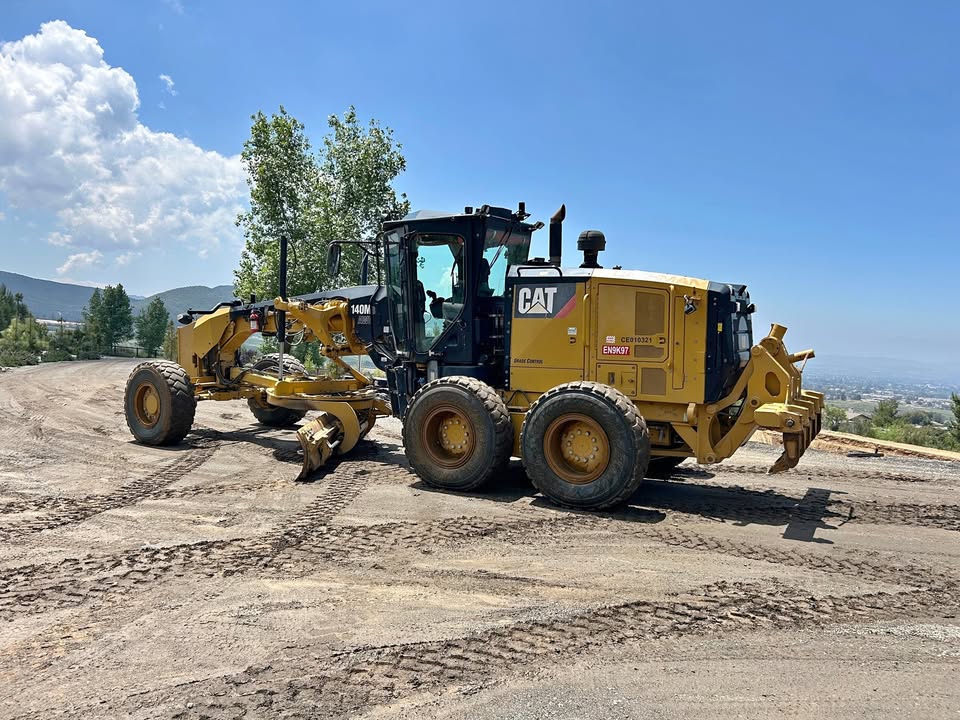

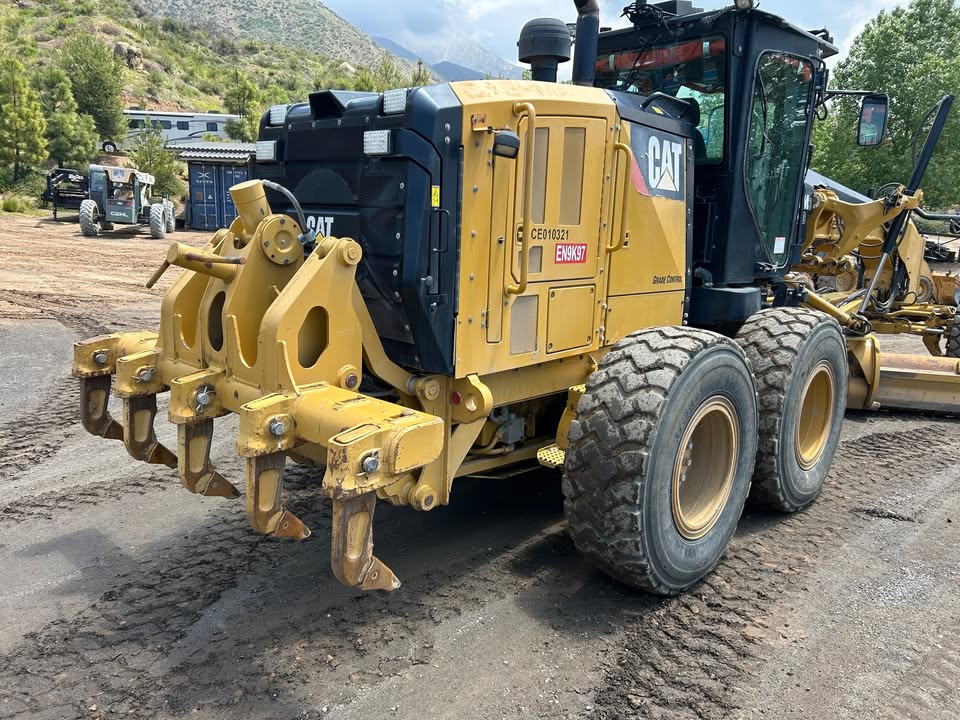

This 2015 Caterpillar 140M3 AWD Motor Grader is in excellent condition and runs perfectly. It comes equipped with mastless Trimble Earthworks GPS, blade side shifting on GPS, and is fully GPS-ready. The machine has low hours, with all pins and bushings tight, and tires in great shape. A solid, well-maintained AWD grader that is ready to go straight to work.

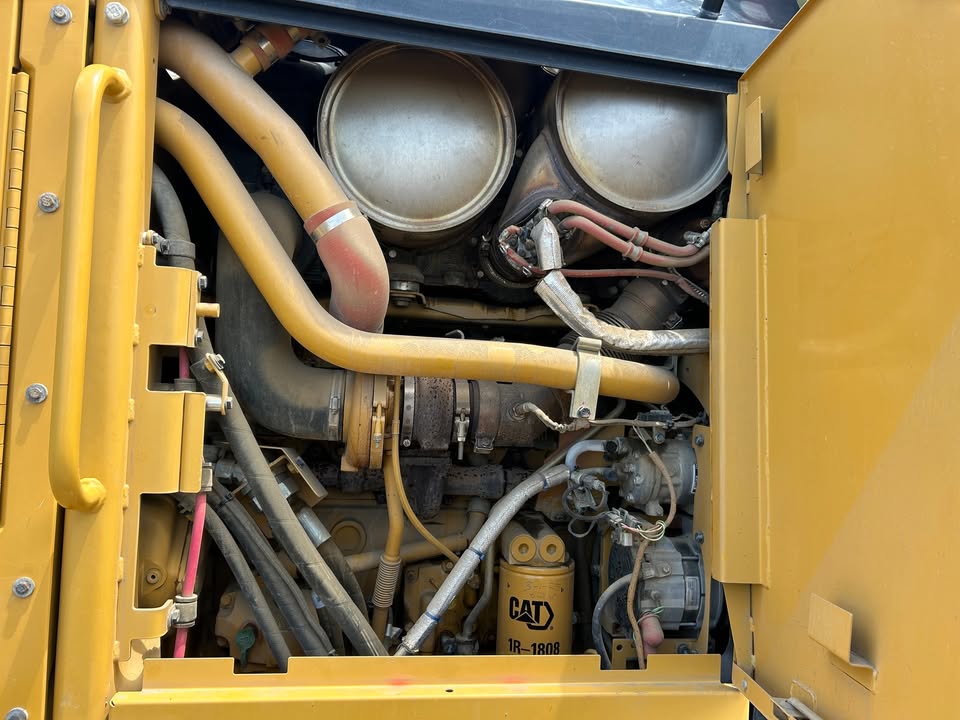

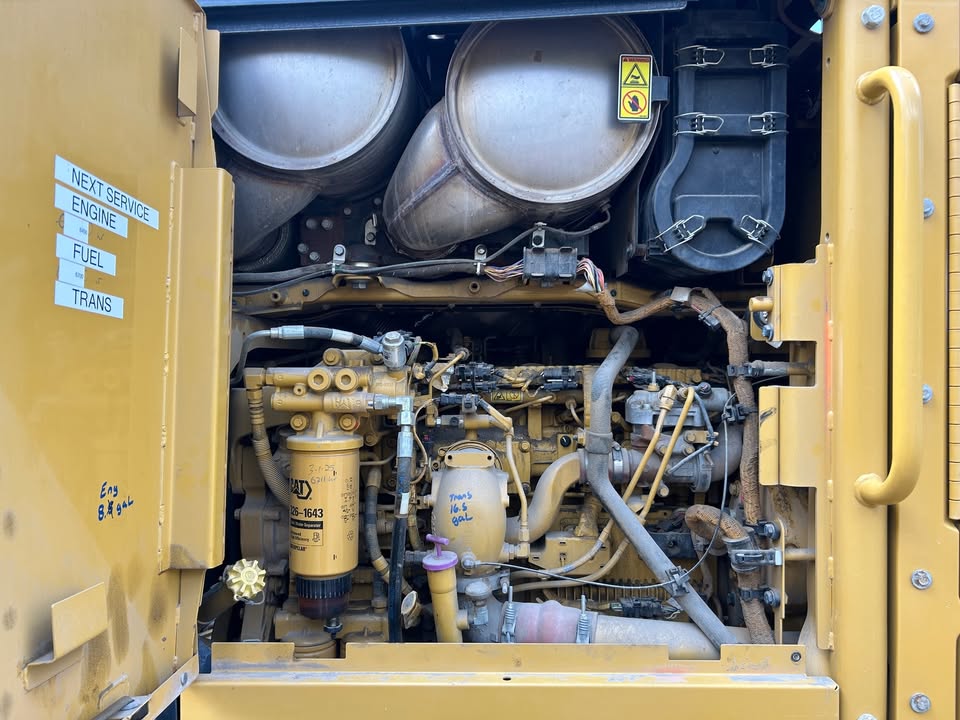

Engine

  • Model: Cat C9.3 ACERT
  • Net Power: 238 – 293 hp (178 – 218 kW), variable by demand
  • Emissions: Tier 4 Final / EU Stage IV compliant
  • Displacement: 9.3 L (567 in³)
  • Torque Rise: Up to 52%

Operating Specifications

  • Base Operating Weight (Standard AWD): ~ 45,000 lbs (20,400 kg)
  • Top Speed, Forward: 29.5 mph (47.5 km/h)
  • Top Speed, Reverse: 21.9 mph (35.3 km/h)
  • All Wheel Drive (AWD): Standard, provides enhanced traction in tough conditions

Moldboard

  • Blade Width: 14 ft (4.27 m) standard (12 ft optional)
  • Blade Height: 27 in (686 mm)
  • Blade Thickness: 1 in (25 mm)
  • Cutting Edge: 6 in x 0.6 in (152 mm x 16 mm)
  • Max Cutting Depth: 28 in (711 mm)

Hydraulic System

  • Pump Type: Load-sensing, variable displacement piston
  • Maximum System Pressure: 3,500 psi (24,150 kPa)
  • Flow at High Idle: 55 gal/min (208 L/min)

Dimensions

  • Overall Length: 33.7 ft (10.3 m)
  • Overall Width: 8.6 ft (2.6 m)
  • Overall Height (top of cab): 11.3 ft (3.45 m)
  • Wheelbase: 21.3 ft (6.5 m)

Key Features

  • Mastless Trimble Earthworks GPS ready with blade side-shift capability

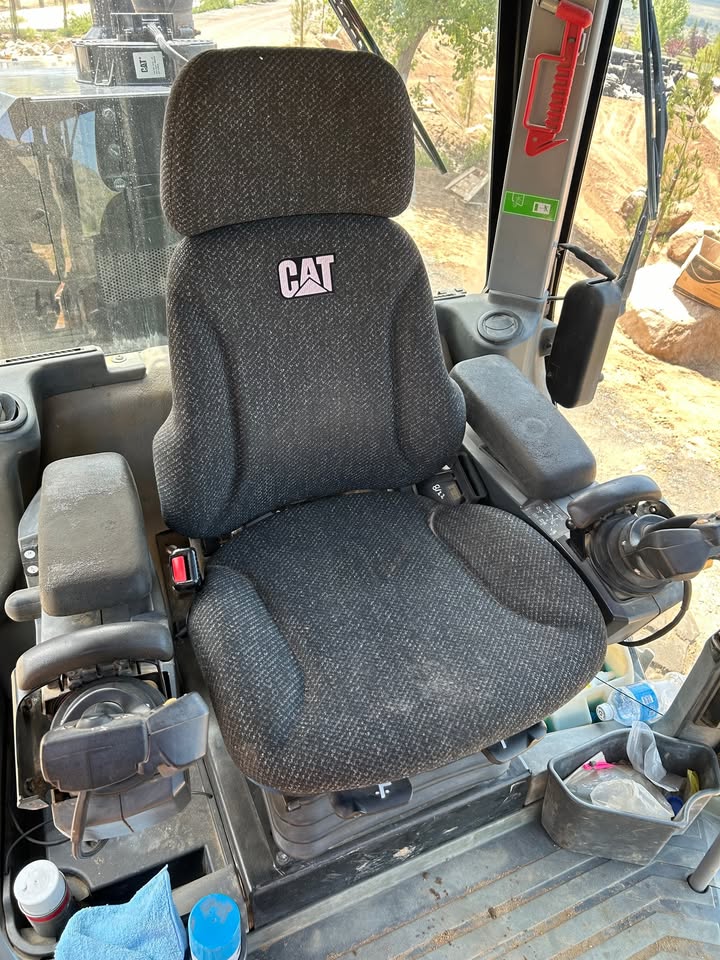

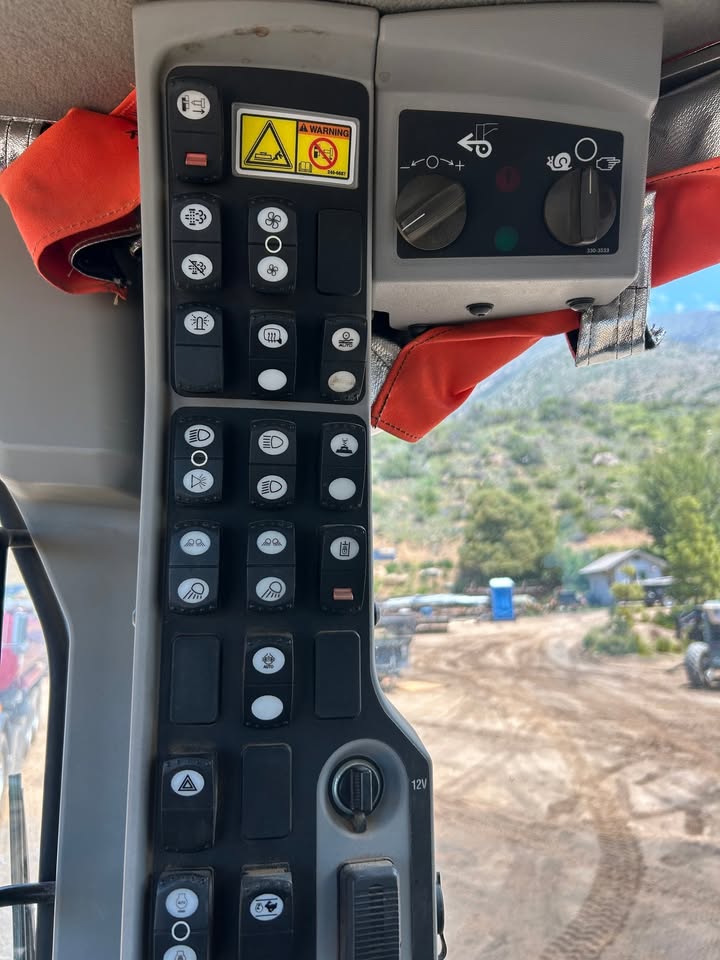

  • Enclosed cab with advanced comfort and visibility
  • Low operating hours
  • Tires in excellent condition
  • All pins and bushings tight
  • Runs perfectly, ready for immediate work
  • Logistics coordination when applicable
  • Shipping available
  • Inspection report available
  • Dedicated sales agent

Can I review inspection photos and a condition report before I buy?

Yes. Listings include detailed photos and, when available, an inspection or condition summary so you can see wear, leaks, undercarriage, and cab condition. Ask your representative for the latest meter reading and any service records the seller can provide—hours and condition are often verified at listing time but can change.

Do you arrange shipping or delivery?

Shipping and logistics are often available nationwide through vetted transport partners. Cost depends on distance, dimensions, weight, and whether the machine is running and load-ready. Your sales representative can quote options and timing; pickup at the equipment location may also be arranged where allowed.

How accurate is the hour meter, and can I verify it?

Published hours reflect the last reported reading on the machine or in available documentation. Meters can be replaced or incorrect; we recommend confirming hours with your own inspection or a qualified technician before purchase. Ask whether an ECM or telematics readout is available for your unit.

Is the machine sold as-is, and is there a warranty?

Used heavy equipment is often sold as-is, where-is, unless a separate written warranty or service plan is offered on your specific deal. Remaining manufacturer or extended coverage, if any, may be transferable—confirm in writing. Always review the purchase agreement and inspection terms before committing.

What paperwork should I expect (title, lien release, export)?

Expect a bill of sale and any title or ownership documents required in your state or country. If the unit was financed, ensure lien release is documented. For export, additional customs, EPA, or certification paperwork may apply—your representative can flag what is needed for your destination.

Pricing

Asking price
Contact for pricing

Eligible businesses may reduce taxable income faster by depreciating qualifying equipment in the year it is placed in service (rules vary by entity and tax year). This is not tax advice—the figure below is an illustrative savings estimate only; consult your accountant.

💡 Want to see your estimated tax savings and monthly payments?

Status: available

Price excludes taxes, fees, and shipping unless noted. Contact your representative for availability and inspections.
