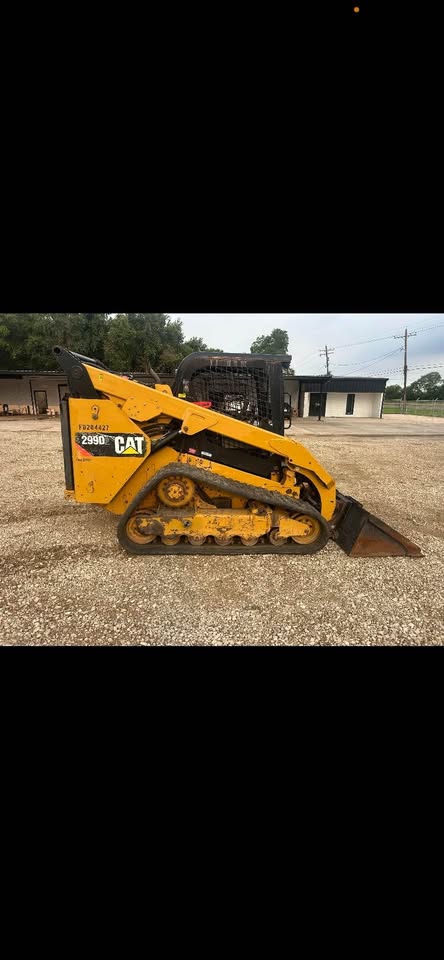

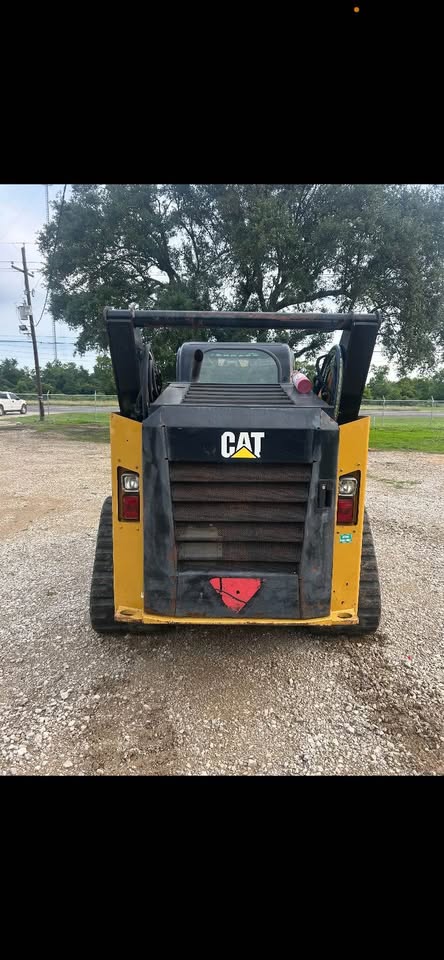

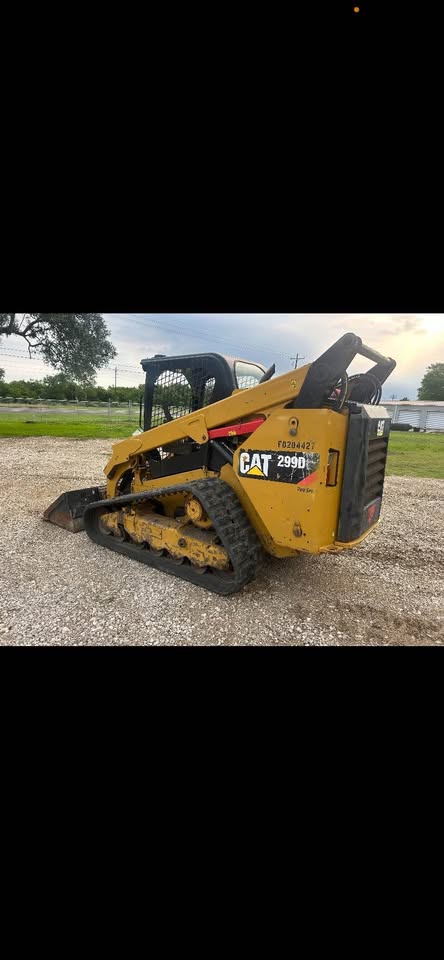

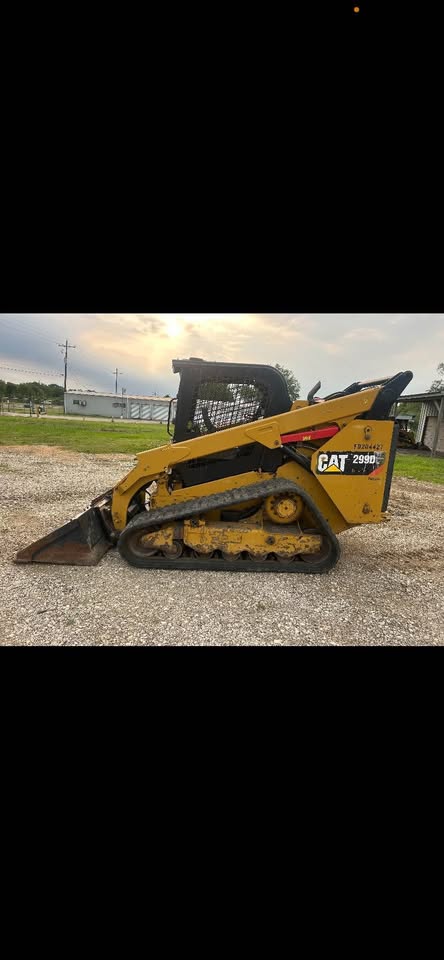

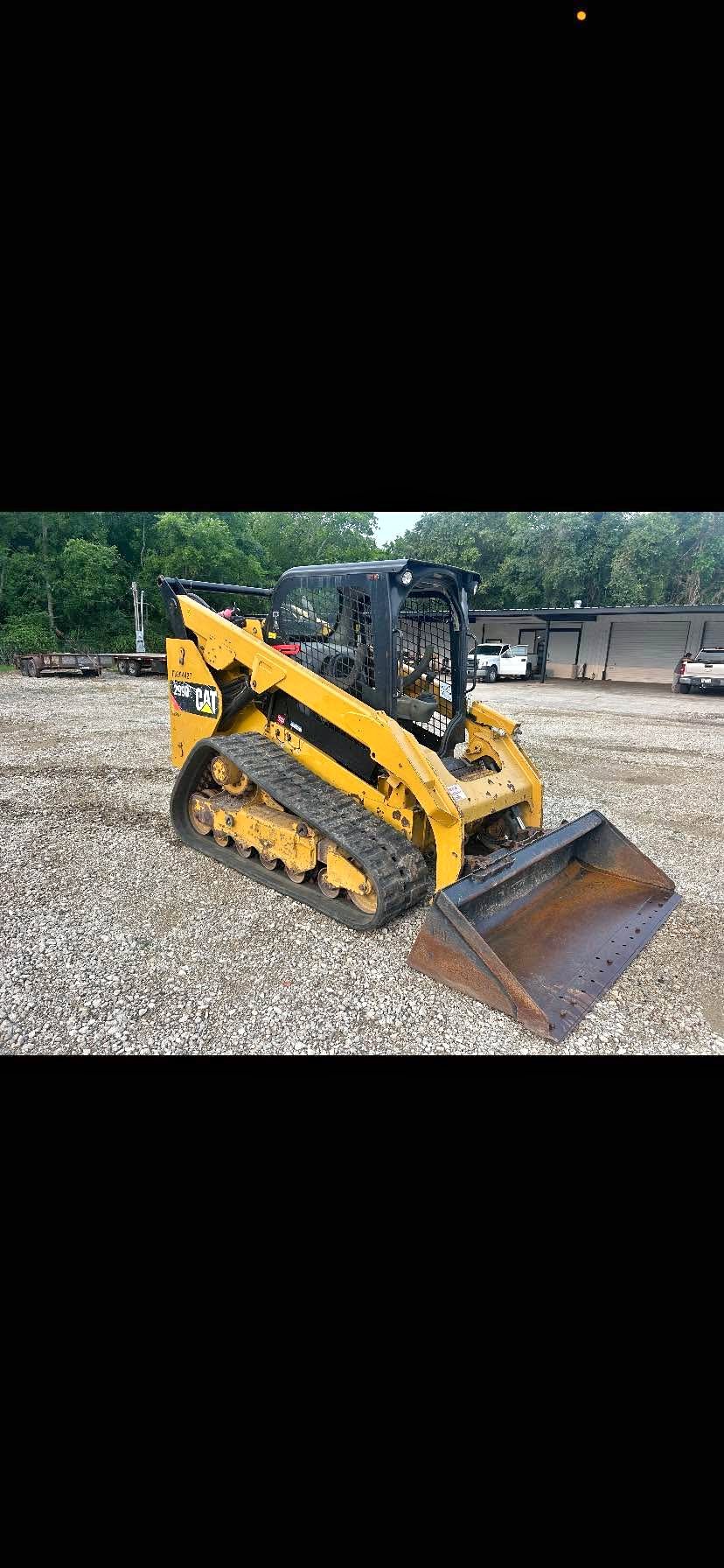

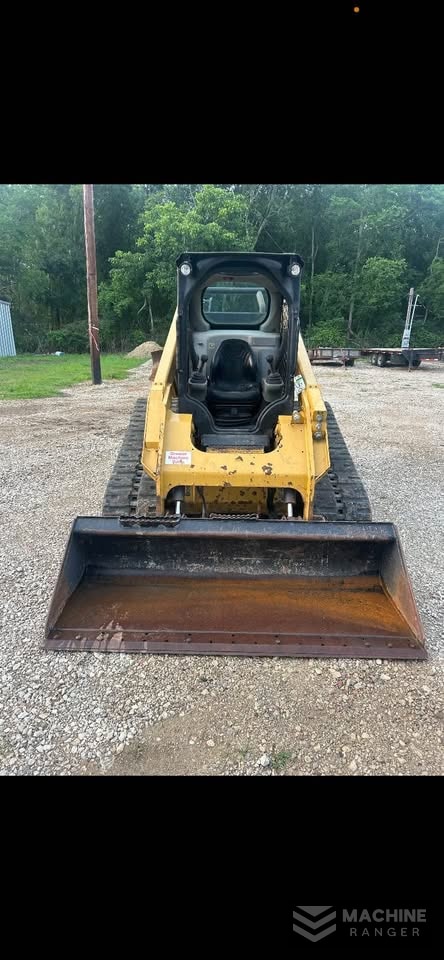

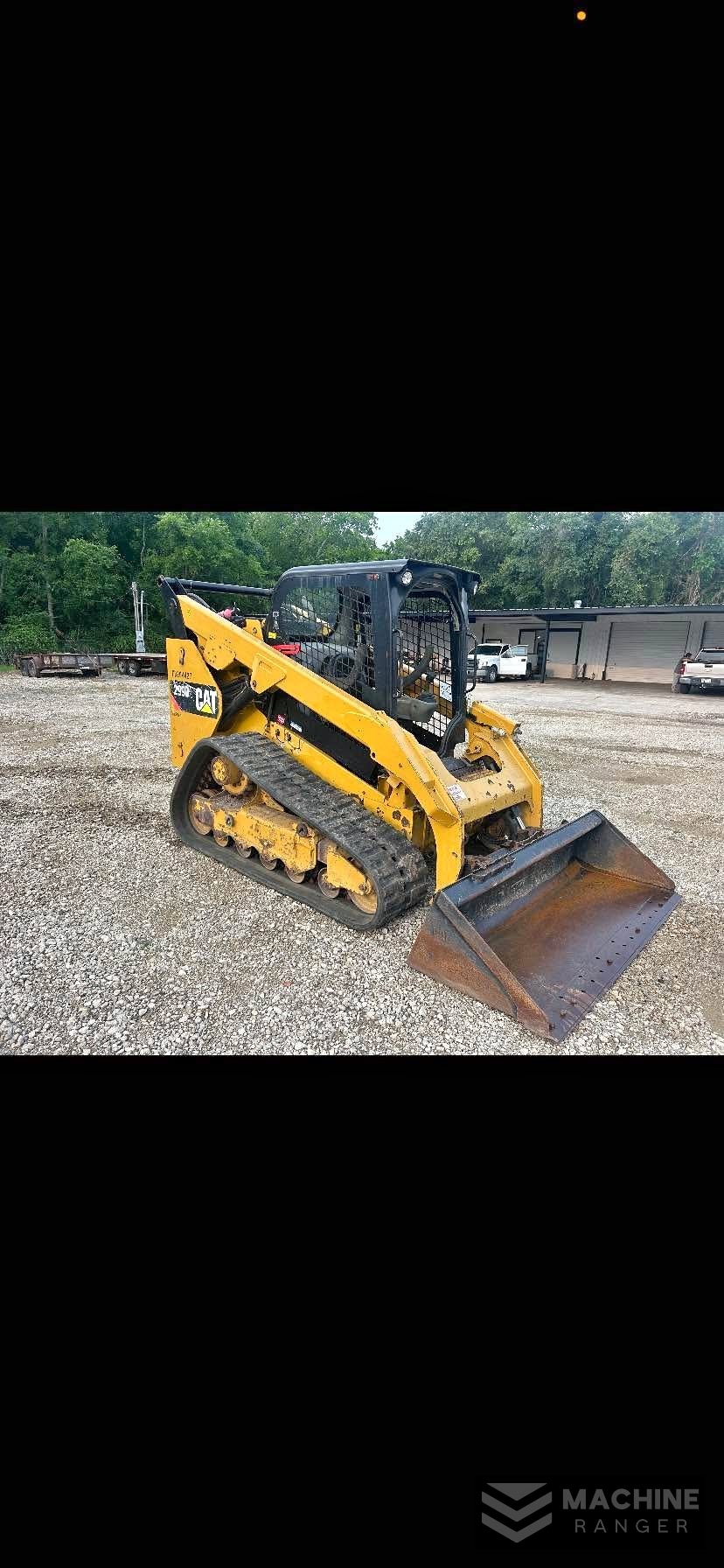

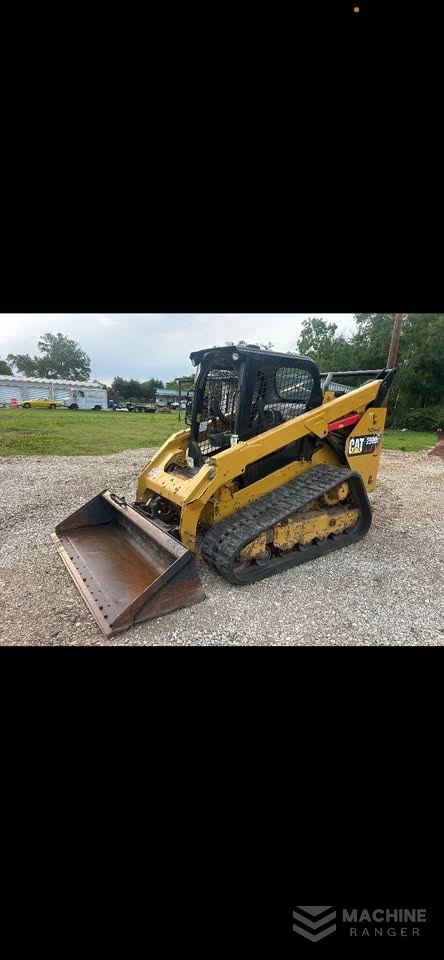

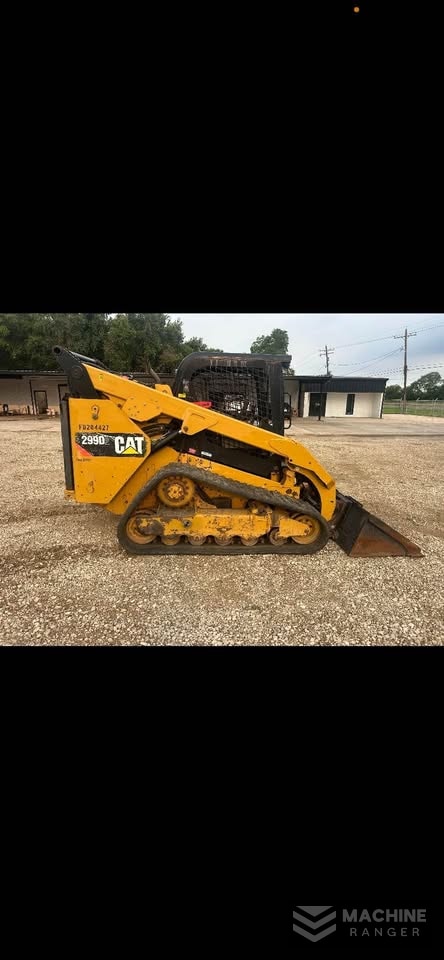

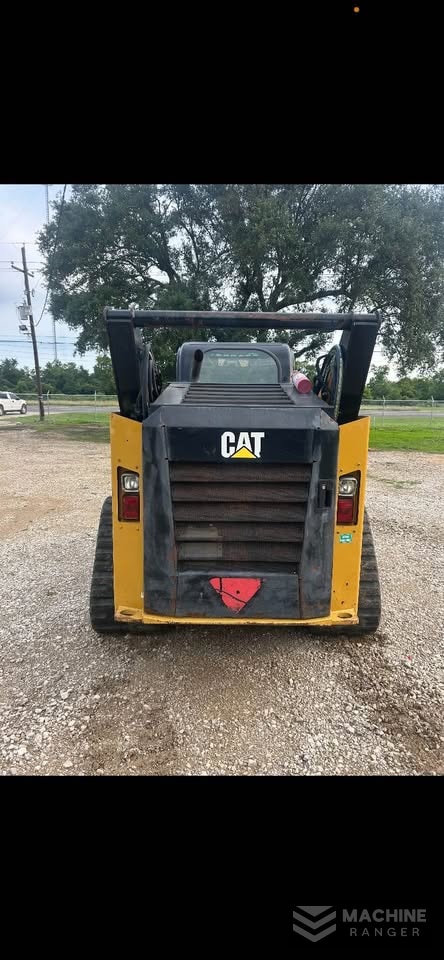

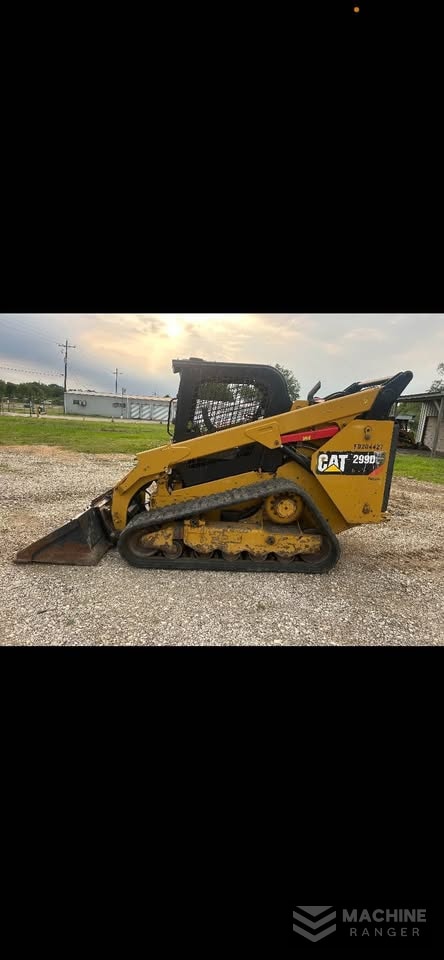

2018 CAT 299D2 Track Loader

Tough, reliable, and built to perform, this CAT 299D2 delivers the power and precision you need on any job site. With only 2,626 hours, this machine is in great working condition and ready to get to work today.

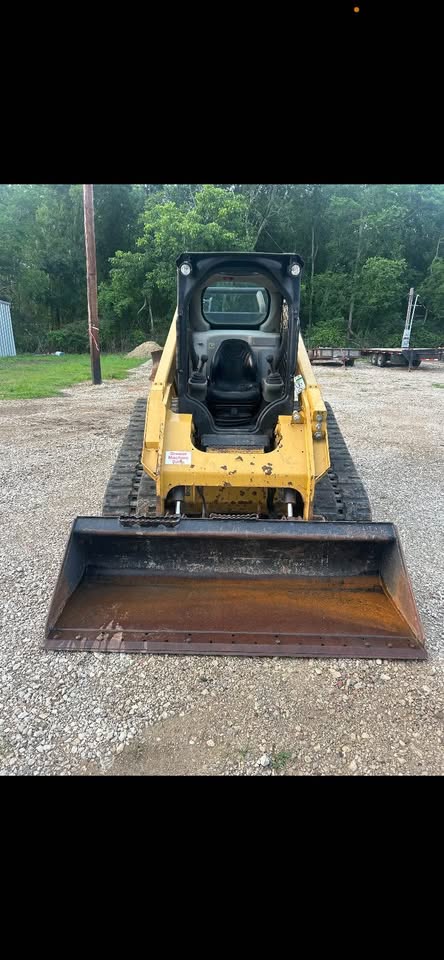

Equipped with a canopy for visibility and comfort, a GP bucket for versatile performance, and a 10.5 ft clearance for added reach and flexibility, it’s ideal for grading, loading, or heavy-duty site prep. CAT’s advanced hydraulic system and smooth joystick controls make operation effortless while maintaining the strength and durability the brand is known for.

CAT 299D2 Compact Track Loader – Specifications

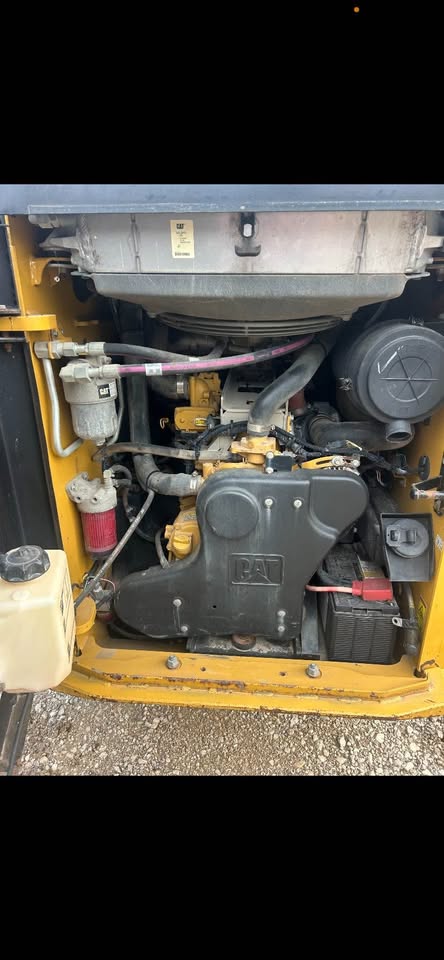

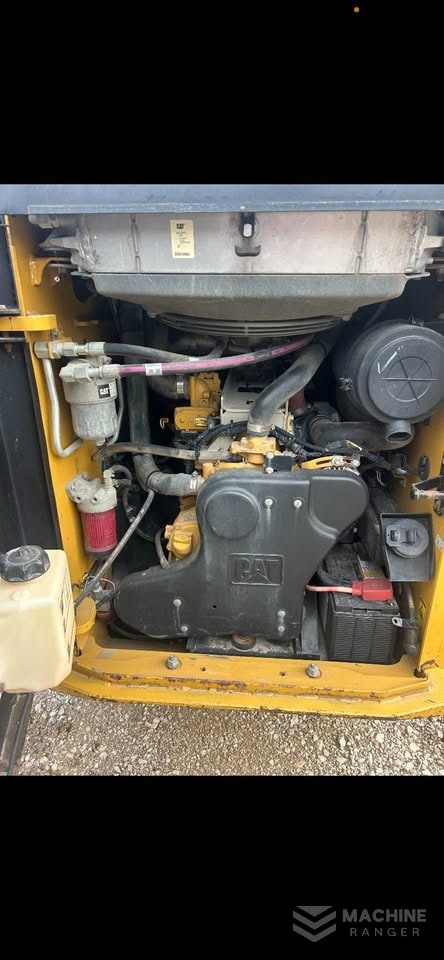

Engine

• Model: Cat C3.3B DIT (Turbocharged)
• Gross Power: 98 hp (73 kW)
• Net Power (ISO 9249): 95 hp (71 kW)
• Displacement: 203 in³ (3.33 L)
• Cylinders: 4

Performance

• Rated Operating Capacity (35% Tipping Load): 3,480 lb (1,580 kg)
• Rated Operating Capacity (50% Tipping Load): 4,975 lb (2,258 kg)
• Tipping Load: 9,950 lb (4,517 kg)
• Breakout Force, Tilt Cylinder: 7,538 lb (3,419 kg)
• Travel Speed (Forward or Reverse): 8.5 mph (13.6 km/h)

Dimensions

• Length with Bucket on Ground: 146.2 in (3,713 mm)
• Width (over tracks): 78 in (1,981 mm)
• Height to Top of Cab: 83.1 in (2,111 mm)
• Clearance at Max Lift and Dump: 10.5 ft (3.2 m)
• Ground Clearance: 9.4 in (239 mm)
• Turning Radius (from center): 89.9 in (2,284 mm)

Hydraulic System

• Hydraulic Flow (Standard): 23 gal/min (87 L/min)
• Hydraulic Flow (High Flow Option): 30 gal/min (114 L/min)
• Hydraulic Pressure: 3,335 psi (23,000 kPa)

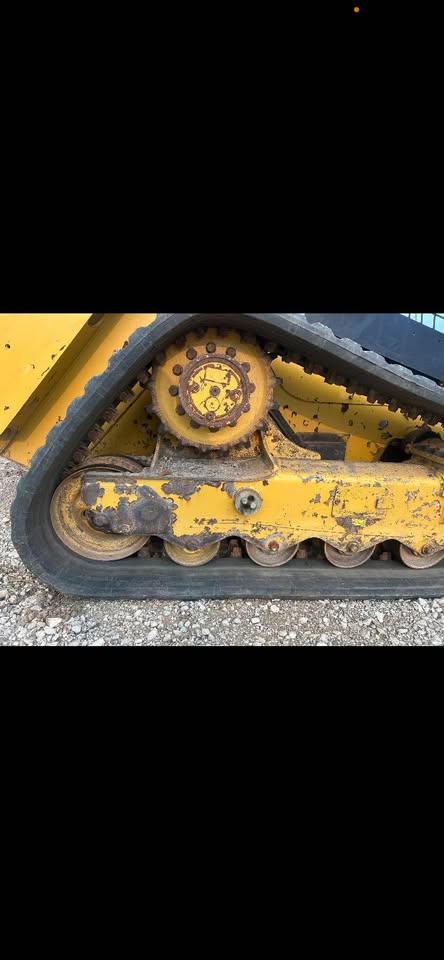

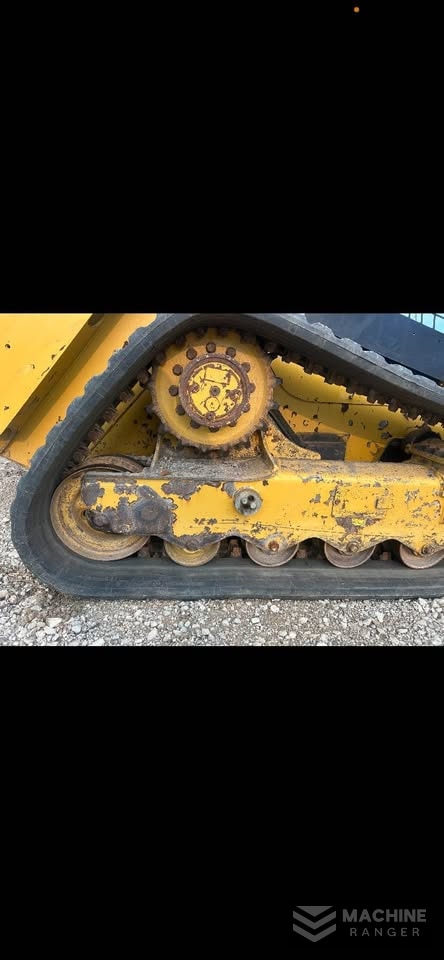

Undercarriage

• Track Width: 17.7 in (450 mm)
• Ground Contact Area: 3,760 in² (2.42 m²)
• Ground Pressure: 4.8 psi

Weights

• Operating Weight: 11,464 lb (5,200 kg)

Fuel & Fluids

• Fuel Tank Capacity: 27.7 gal (105 L)
• Hydraulic Tank Capacity: 14 gal (53 L)
