2014 Caterpillar 336E

📍 USAStock #:EQ000851Show on map
Share

11,785 hrs

Excavators

Used

Has AC

No

Has Heat

No

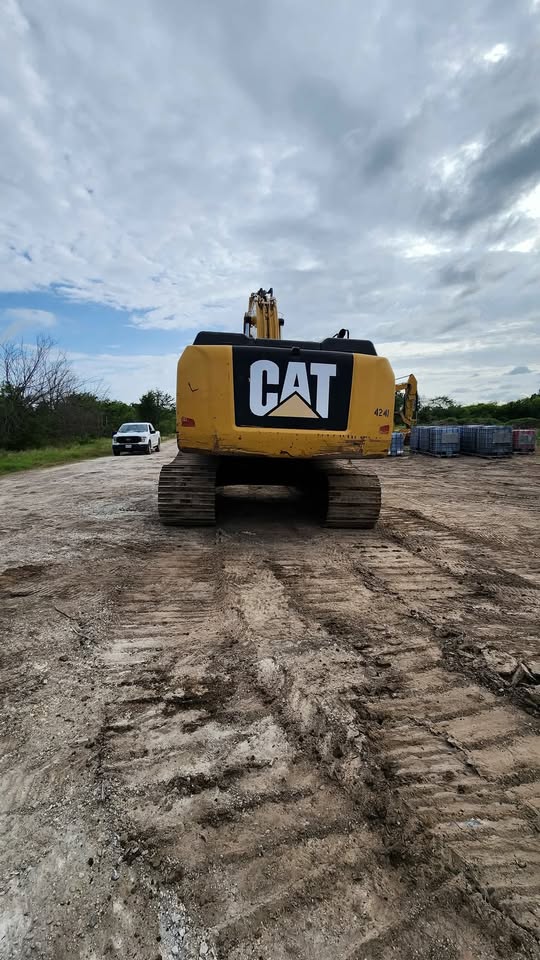

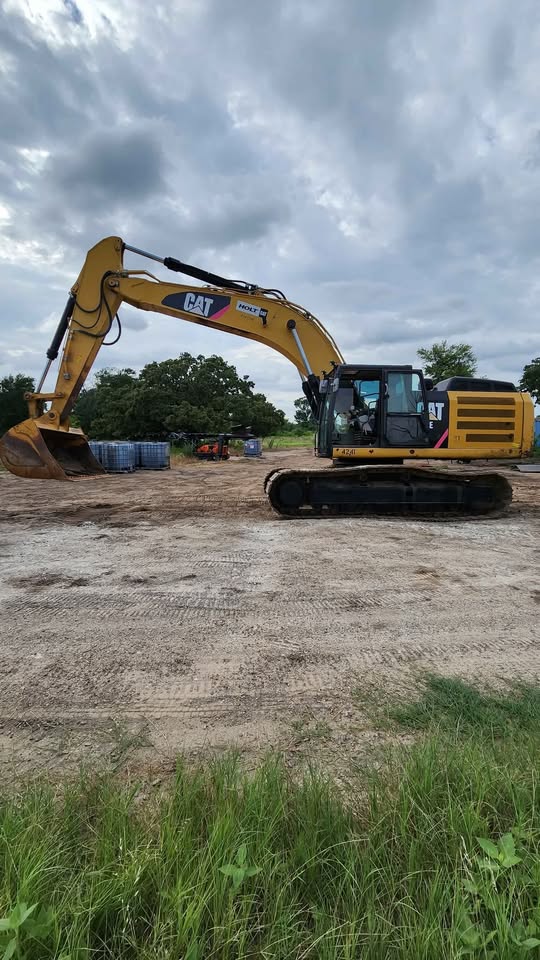

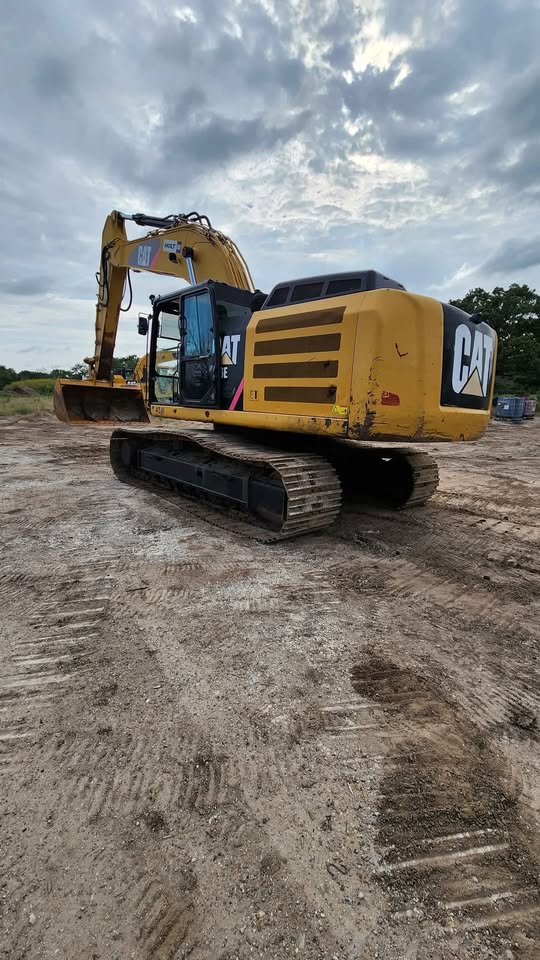

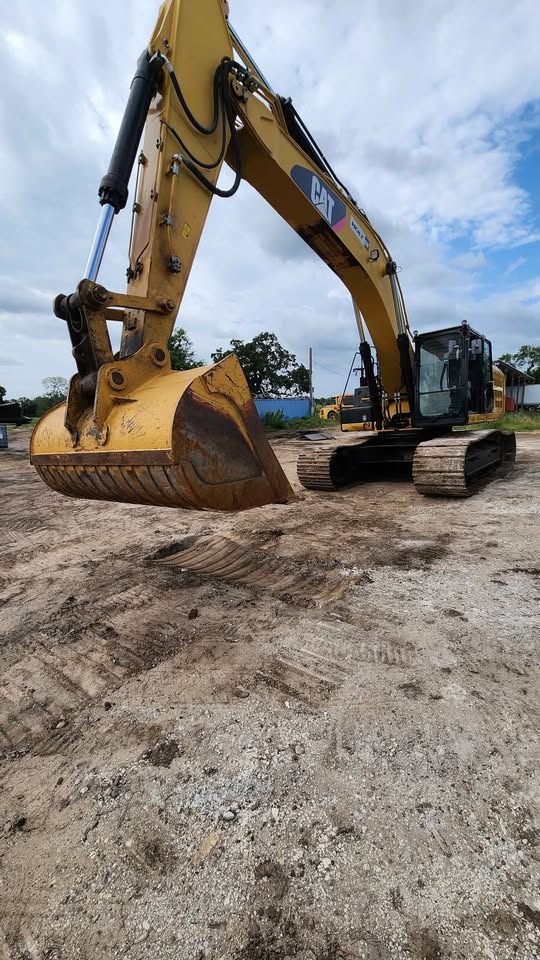

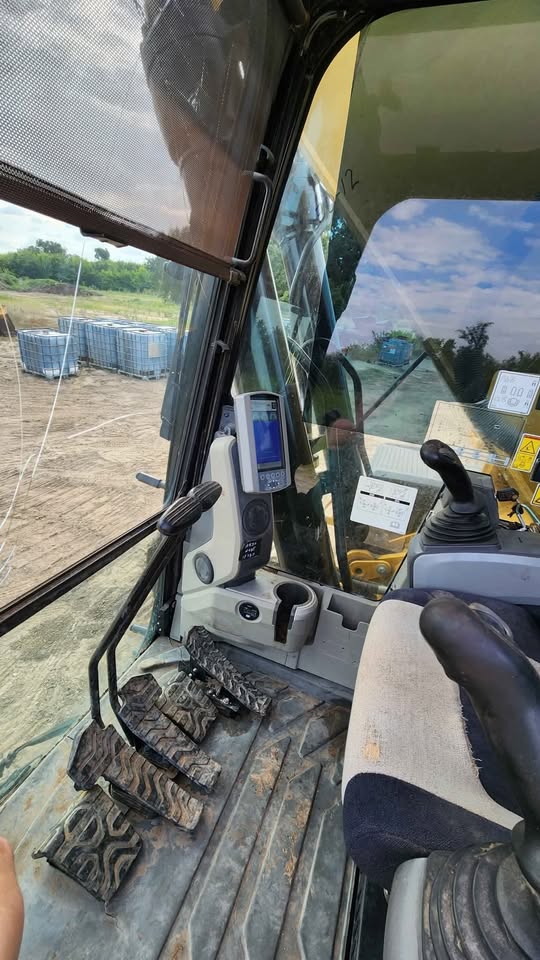

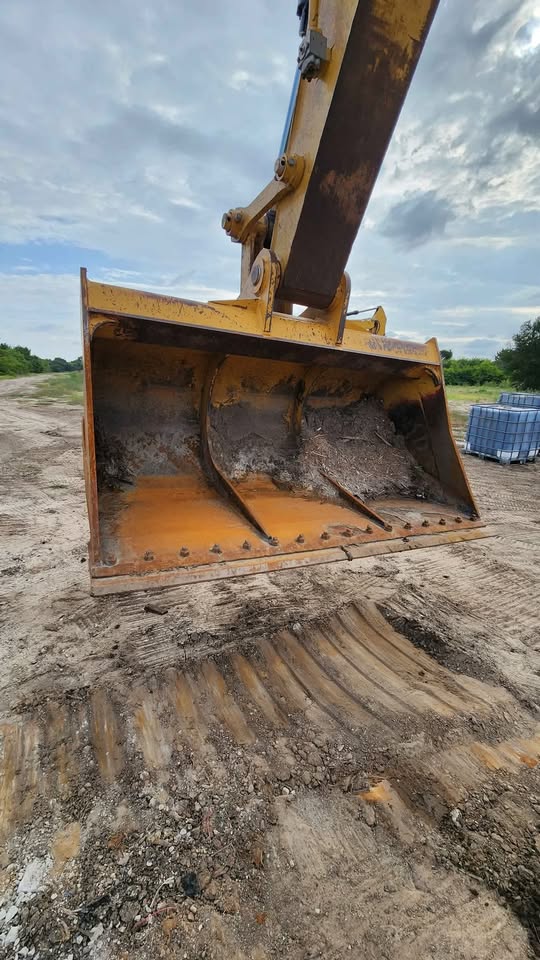

2014 CAT 336E Excavator was used primarily for turning mulch and has been well maintained. It comes with a 94-inch ditching bucket valued at $10,000, ideal for grading and material handling. We're also including a 39-inch digging bucket with pins at no extra cost, giving you added versatility for a variety of jobs. The A/C is already charged up and blowing ice cold. This machine is jobsite ready.

Engine

  • Model: Cat® C9.3 ACERT™
  • Net Power (ISO 9249): 308 hp (230 kW)
  • Gross Power: 321 hp (239 kW)
  • Displacement: 568 in³ (9.3 L)
  • Bore: 4.5 in (115 mm)
  • Stroke: 5.9 in (149 mm)
  • Emissions: Tier 4 Interim / Stage IIIB

Operating Specifications

  • Operating Weight: 80,500 lb (36,500 kg)
  • Maximum Reach at Ground Level: ~38.1 ft (11.6 m)
  • Maximum Digging Depth: ~26.9 ft (8.2 m)
  • Maximum Cutting Height: ~35.1 ft (10.7 m)
  • Maximum Loading Height: ~24.5 ft (7.5 m)
  • Bucket Digging Force: 46,300 lbf (206 kN)
  • Stick Digging Force: 34,900 lbf (155 kN)

Hydraulic System

  • Main System - Maximum Flow: 560 L/min (148 gal/min)
  • Max Pressure – Equipment: 5,081 psi (35,000 kPa)
  • Swing Torque: 98,610 lb-ft (133.7 kNm)

Undercarriage

  • Track Width (Standard): 32 in (800 mm)
  • Ground Pressure: ~6.8 psi
  • Max Travel Speed: 3.4 mph (5.5 km/h)
  • Drawbar Pull: 73,800 lb (328.4 kN)

Fluid Capacities

  • Fuel Tank: 163 gal (620 L)
  • Hydraulic Tank: 51.5 gal (195 L)
  • Cooling System: 8.5 gal (32 L)
  • Engine Oil: 8 gal (30 L)
  • Logistics coordination when applicable
  • Shipping available
  • Inspection report available
  • Dedicated sales agent

Can I review inspection photos and a condition report before I buy?

Yes. Listings include detailed photos and, when available, an inspection or condition summary so you can see wear, leaks, undercarriage, and cab condition. Ask your representative for the latest meter reading and any service records the seller can provide—hours and condition are often verified at listing time but can change.

Do you arrange shipping or delivery?

Shipping and logistics are often available nationwide through vetted transport partners. Cost depends on distance, dimensions, weight, and whether the machine is running and load-ready. Your sales representative can quote options and timing; pickup at the equipment location may also be arranged where allowed.

How accurate is the hour meter, and can I verify it?

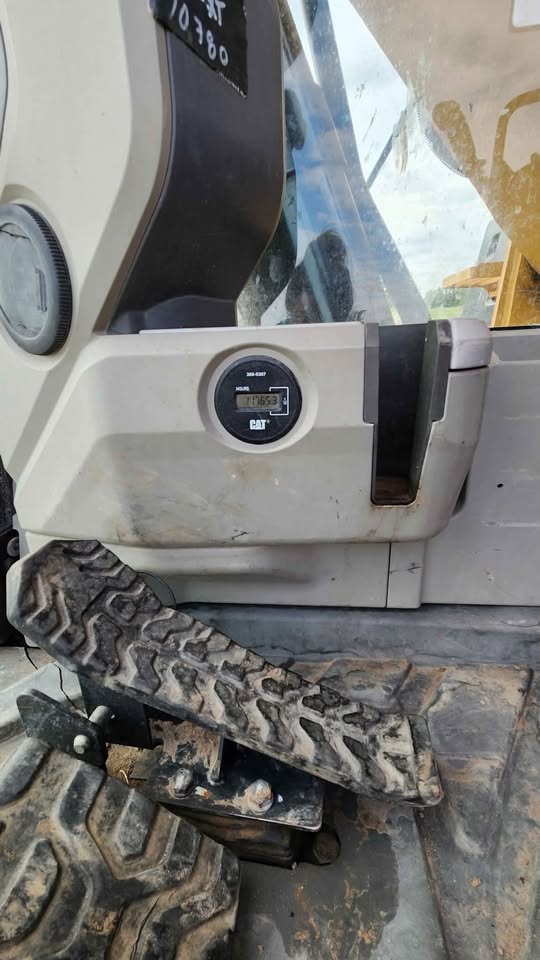

Published hours reflect the last reported reading on the machine or in available documentation. Meters can be replaced or incorrect; we recommend confirming hours with your own inspection or a qualified technician before purchase. Ask whether an ECM or telematics readout is available for your unit.

Is the machine sold as-is, and is there a warranty?

Used heavy equipment is often sold as-is, where-is, unless a separate written warranty or service plan is offered on your specific deal. Remaining manufacturer or extended coverage, if any, may be transferable—confirm in writing. Always review the purchase agreement and inspection terms before committing.

What paperwork should I expect (title, lien release, export)?

Expect a bill of sale and any title or ownership documents required in your state or country. If the unit was financed, ensure lien release is documented. For export, additional customs, EPA, or certification paperwork may apply—your representative can flag what is needed for your destination.

Pricing

Asking price
Contact for pricing

Eligible businesses may reduce taxable income faster by depreciating qualifying equipment in the year it is placed in service (rules vary by entity and tax year). This is not tax advice—the figure below is an illustrative savings estimate only; consult your accountant.

💡 Want to see your estimated tax savings and monthly payments?

Status: available

Price excludes taxes, fees, and shipping unless noted. Contact your representative for availability and inspections.
