2018 CAT D6T XL Dozer (Standard Track, Not LGP)

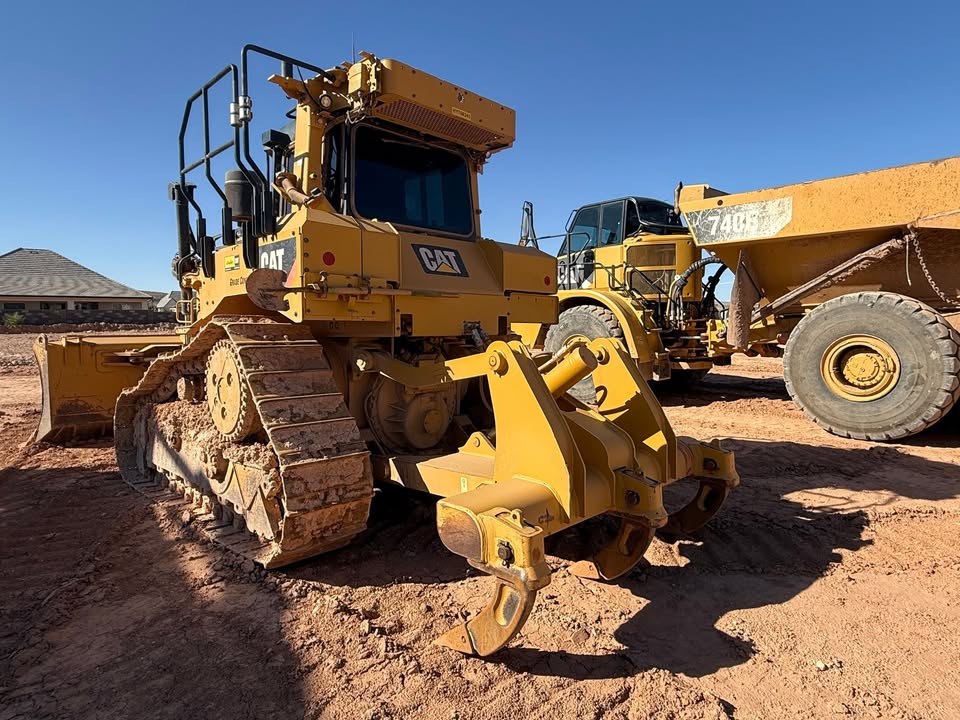

Tough, reliable, and work-ready, this 2018 Caterpillar D6T XL is a solid performer for any job site. With 9800 hours and a history of excellent maintenance, this machine runs strong and clean. It features a 6-way blade, rear rippers, and good tracks and undercarriage, providing the perfect balance of traction and stability without the wide LGP setup.

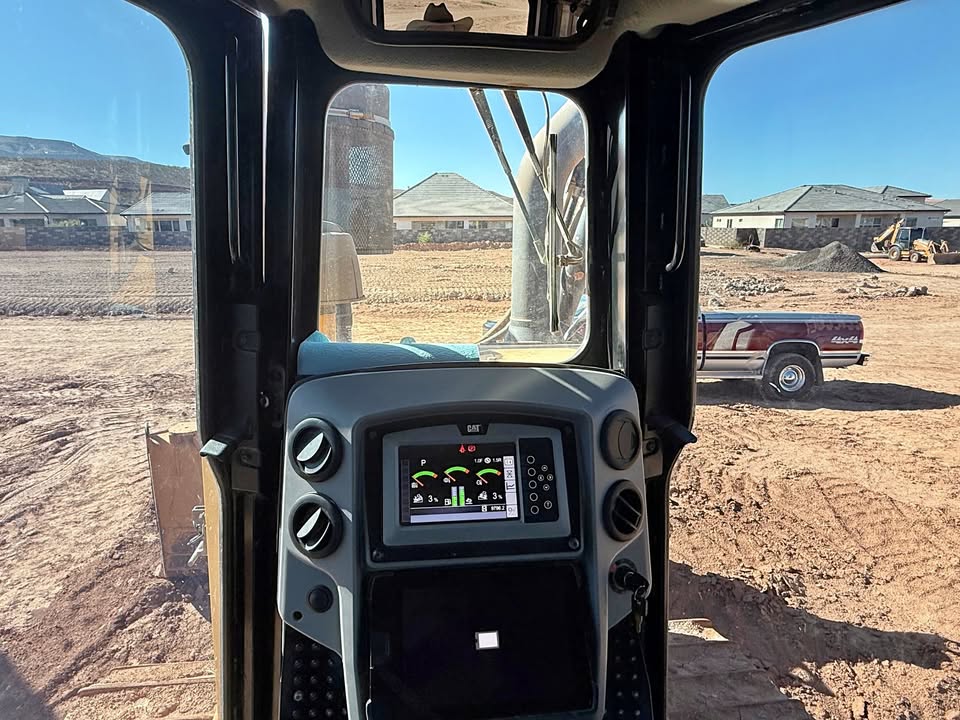

The cab is loaded for comfort and productivity, including A/C, heat, stereo, and a rear camera. It’s also GPS ready, making it easy to integrate with your site technology.

Engine

• Engine Model: Cat C9.3 ACERT
• Net Power: 215 hp (161 kW)
• Gross Power: 245 hp (183 kW)
• Displacement: 9.3 L (567 in³)
• Cylinders: 6
• Aspiration: Turbocharged and aftercooled
• Fuel Capacity: 105 gal (400 L)
• DEF Capacity: 4.9 gal (18.5 L)
• Emission Standards: Tier 4 Final / Stage IV

Transmission

• Type: Power shift with torque divider
• Speeds: 3 forward / 3 reverse
• Steering: Differential steering for on-the-go speed and direction control

Operating Weights

• Operating Weight (XL): 48,720 lb (22,095 kg)
• Shipping Weight: Approx. 42,500 lb (19,278 kg)

Undercarriage

• Configuration: XL (Standard Track, Not LGP)
• Track Gauge: 78 in (1,980 mm)
• Track Shoe Width: 24 in (610 mm) typical
• Ground Pressure: Approx. 8.4 psi (57.9 kPa)
• Track on Ground: 122 in (3,099 mm)
• Number of Shoes (each side): 40
• Track Rollers (each side): 7

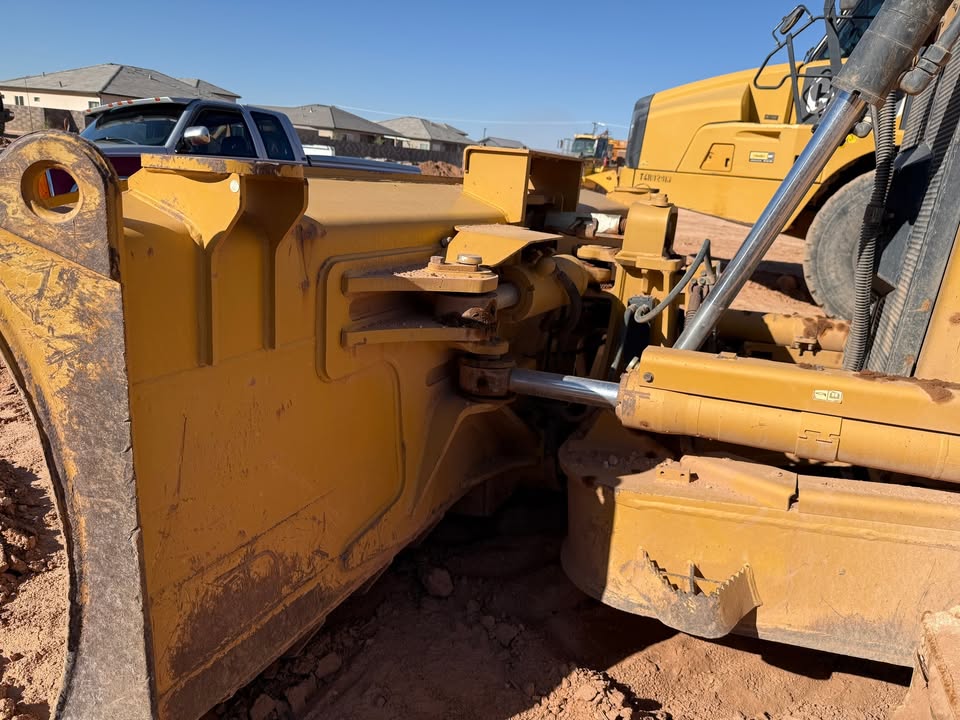

Blade & Ripper

• Blade Type: PAT (6-way Power Angle Tilt)
• Blade Capacity: 5.6 yd³ (4.3 m³)
• Blade Width: 12 ft (3,658 mm)
• Blade Height: 52 in (1,321 mm)
• Ripper Type: Multi-shank rear ripper
• Number of Shanks: 3 (typical)
• Maximum Ripping Depth: 17.6 in (447 mm)

Hydraulic System

• Pump Type: Variable displacement piston pump
• Pump Flow: 39.6 gal/min (150 L/min)
• Relief Pressure: 4,500 psi (31,000 kPa)

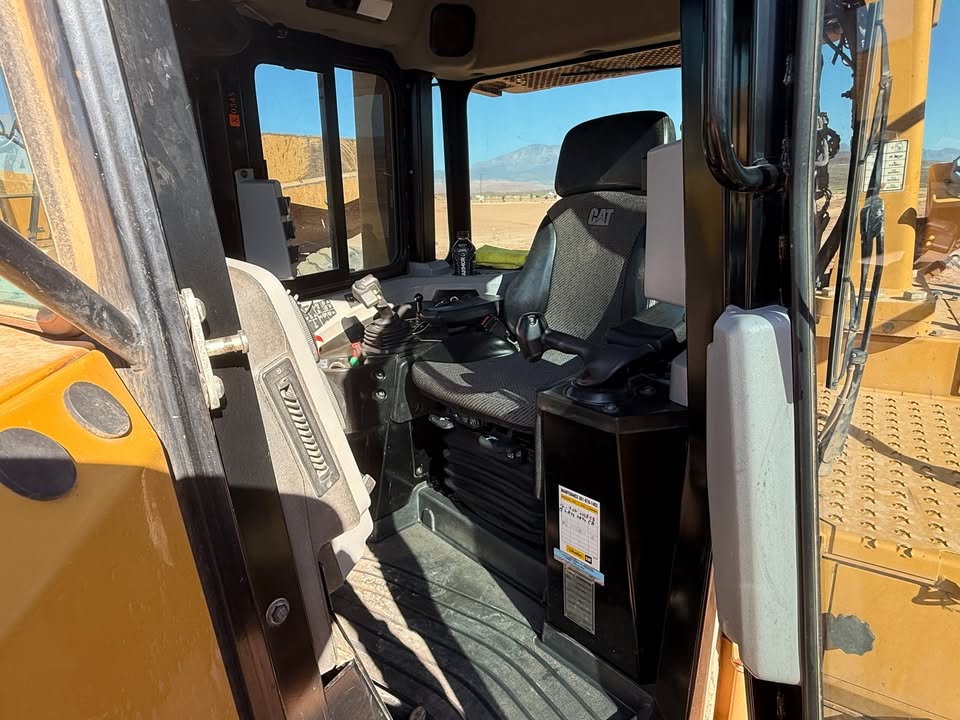

Cab & Operator Environment

• ROPS/FOPS certified cab
• Air conditioning and heating system
• Rearview camera
• AM/FM stereo

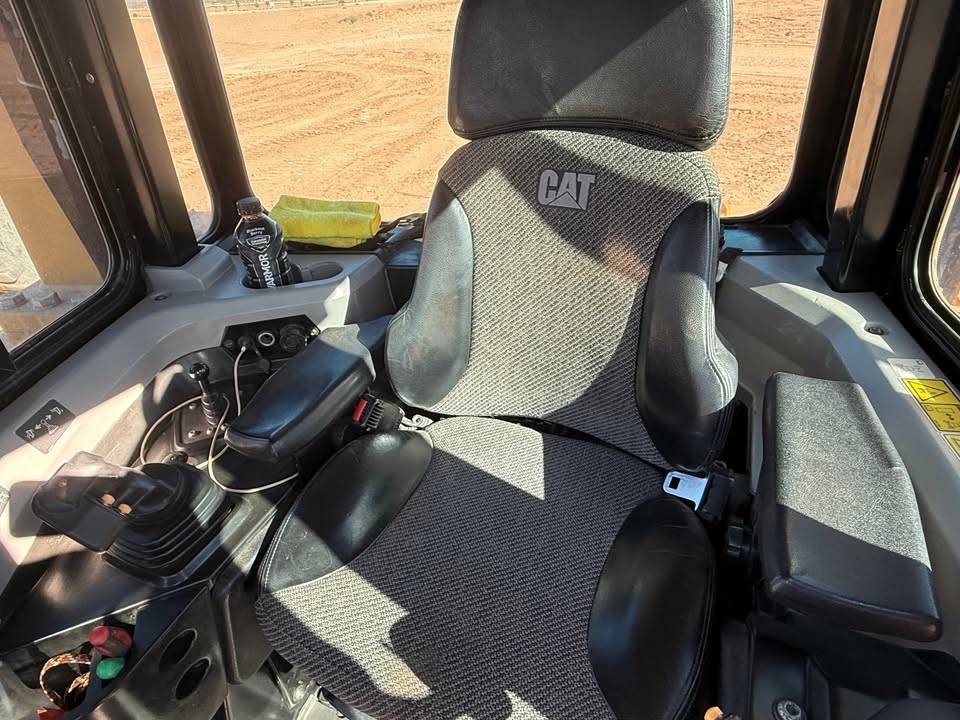

• Adjustable air suspension seat
• Intuitive control joystick system
• Excellent visibility and noise insulation

Technology & Features

• GPS Ready: Compatible with CAT Grade Control 3D or aftermarket systems
• Automatic Ripper Control: Optional
• Auto Shift / Auto Carry: Standard on Tier 4 models
• Product Link™: Optional for remote machine monitoring

Dimensions

• Overall Length (with blade): 17.4 ft (5.30 m)
• Overall Width (blade straight): 11.8 ft (3.60 m)
• Height to Cab: 10.4 ft (3.17 m)
• Ground Clearance: 15 in (380 mm)

Performance

• Drawbar Pull: 81,300 lb (362 kN)
• Max Travel Speed (Forward): 6.6 mph (10.6 km/h)
• Max Travel Speed (Reverse): 7.3 mph (11.7 km/h)
