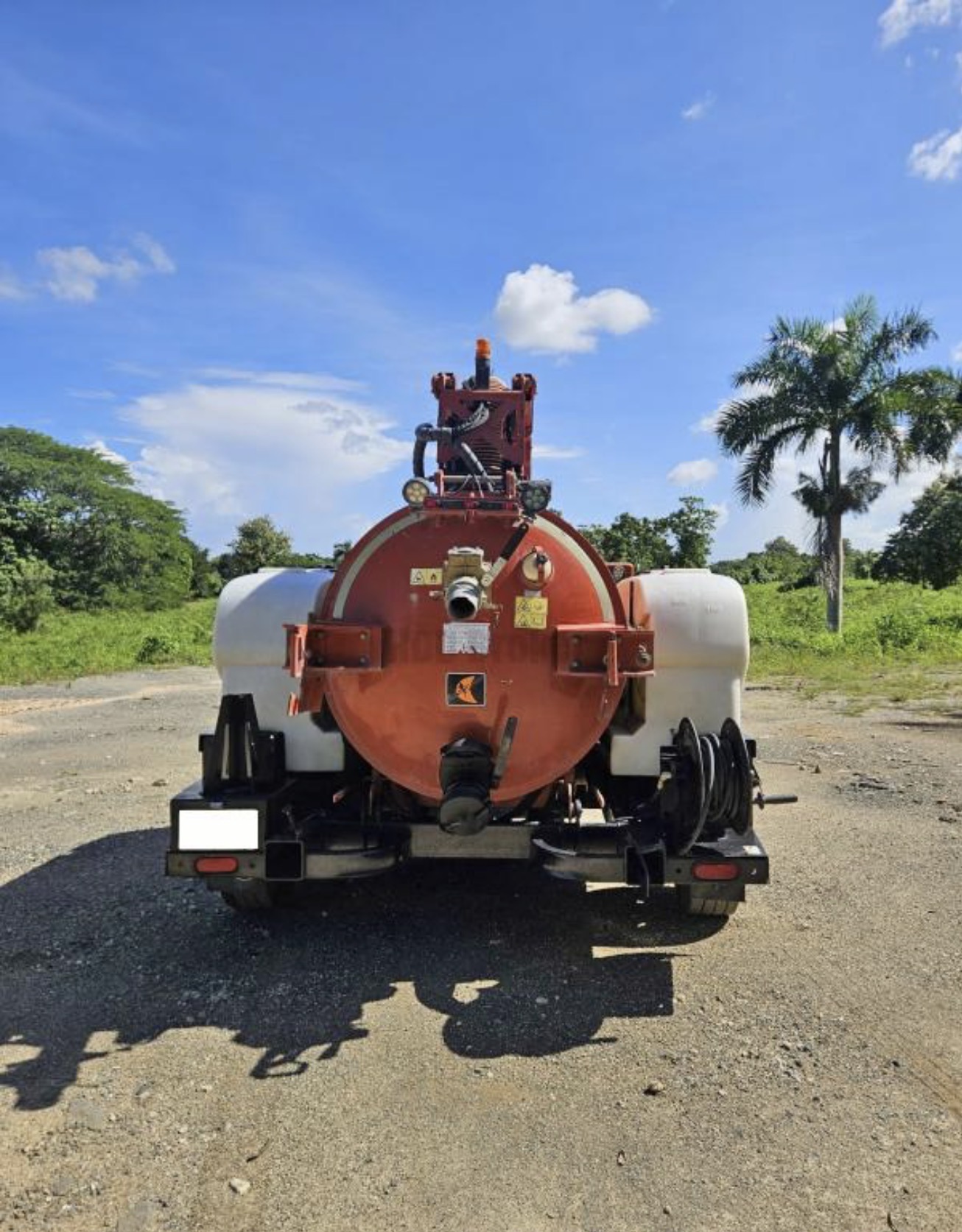

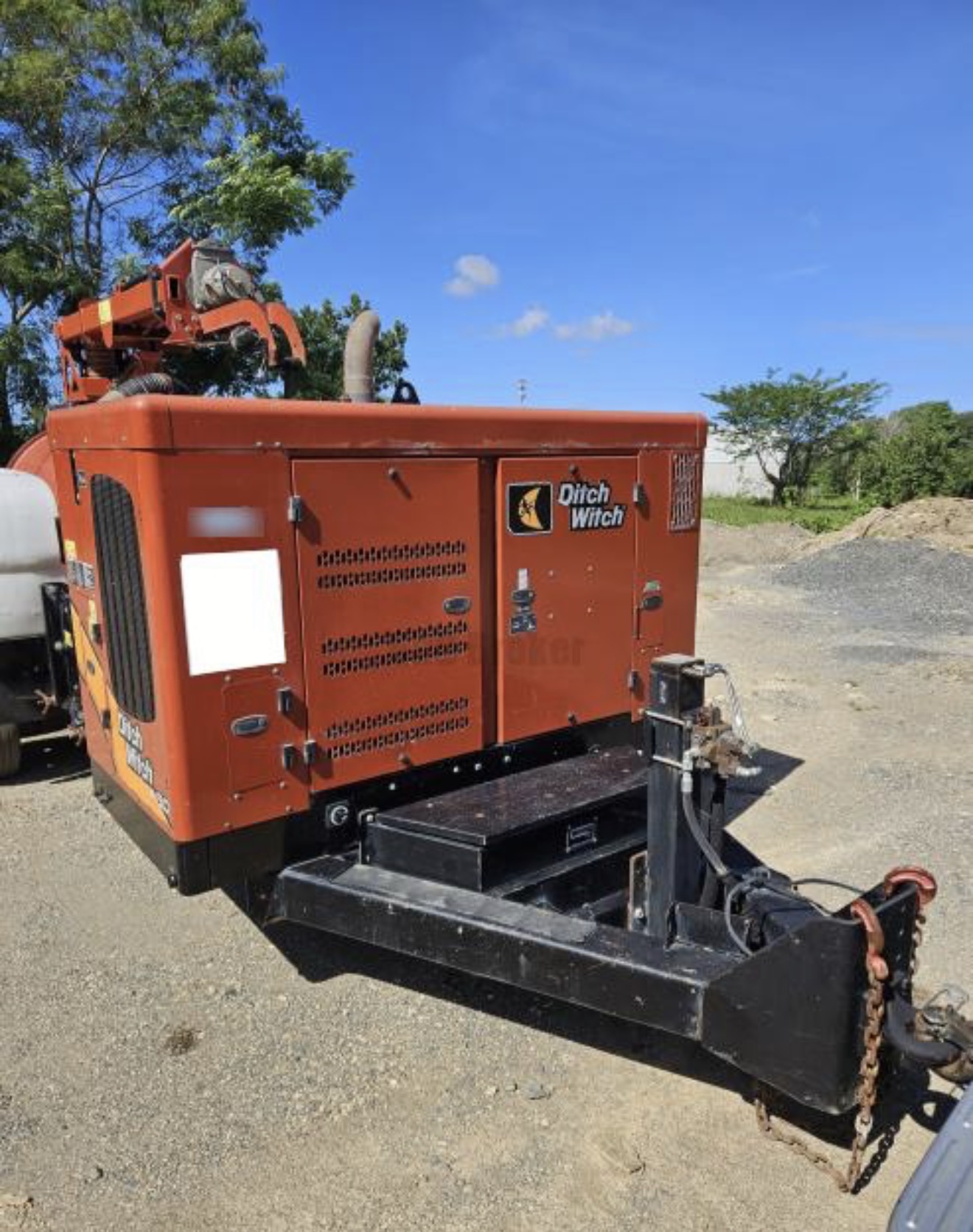

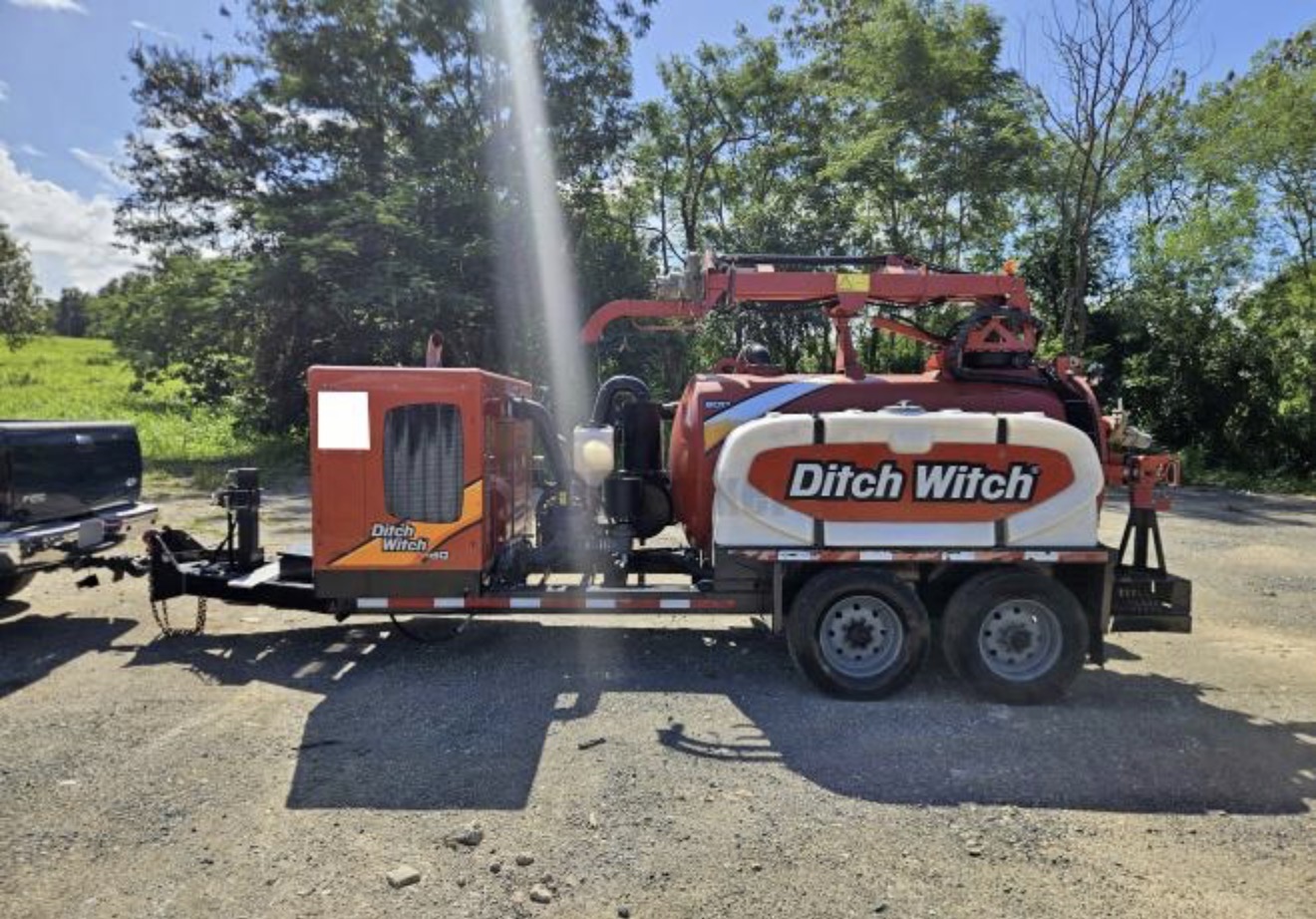

High-production 2020 Ditch Witch HX50-800 in excellent working condition. Equipped with a 49 hp Kubota diesel engine and 1,005 cfm blower, this unit is built for high-volume vacuum excavation, potholing, and micro-trenching support. This machine features the three-stage cyclonic filtration system, essential for maintaining suction while handling dry spoil and fine dust. Paired with a dedicated 2020 Ditch Witch VT trailer for a stable, low-profile towing footprint. Work-ready and maintained for immediate deployment.
Key Features:
• Hours: 2732
• Spoil Capacity: 800-Gallon
• Engine: 49 hp Kubota Tier 4 Final Diesel (No DEF required)
• Trailer: 2020 Ditch Witch VT tandem-axle trailer (Electric brakes)
• Filtration: Three-stage cyclonic filtration system
• Suction: 1,005 cfm blower / 15" Hg maximum vacuum
• Water System: 3,000 psi high-pressure water system
• Fresh Water Capacity: 200 gallons (Dual 100-gal tanks)
Additional Specifications:
• Hose Diameter: 4-inch (standard for high-flow suction)
• Blower Type: Roots positive displacement
• Hydraulics: Hydraulic-opening rear door with power locking bolts
• Dimensions (on trailer): Approx. 220" L x 96" W x 95" H
• Empty Weight: Approx. 8,200 lbs (on trailer)
• GVWR: 18,000 lbs (VT Trailer rating)
• Maintenance: External oil level sight glass and easy-access filtration for fast daily service.
