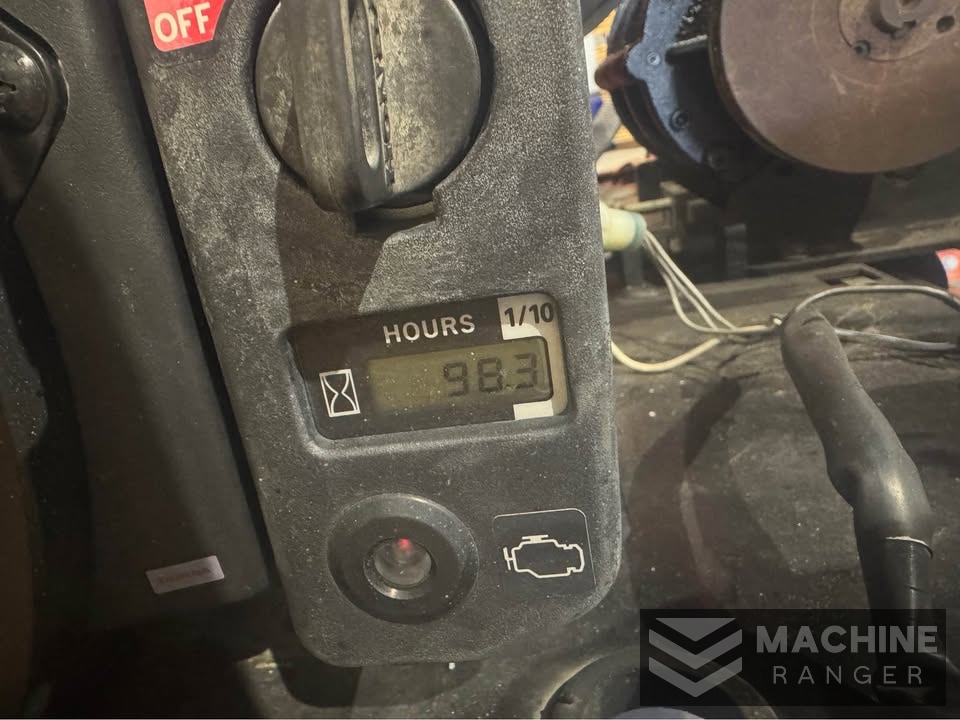

100 hrs
31 HP
Trencher
—
—
Used
5,590 lbs
—
Has AC
No
Has Heat
No
Horsepower
31 HP
Engine model
Vanguard | 2-Cylinder
Engine manufacturer
Briggs & Stratton
Width
96.5 in
Height
91.5 in
Length
208 in
Operating weight
5,590 lbs

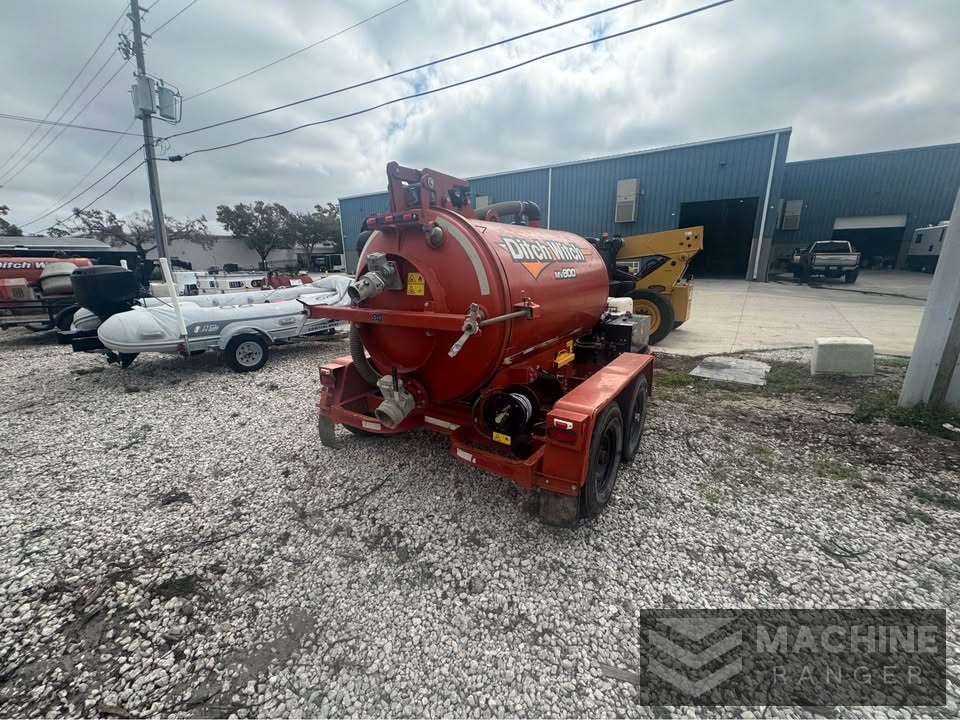

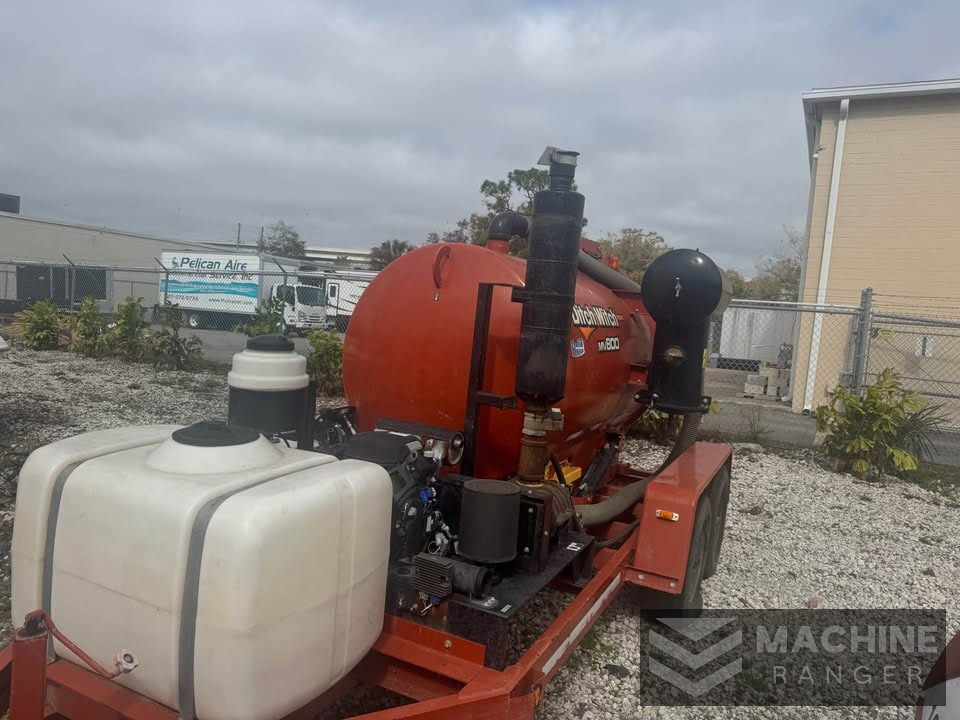

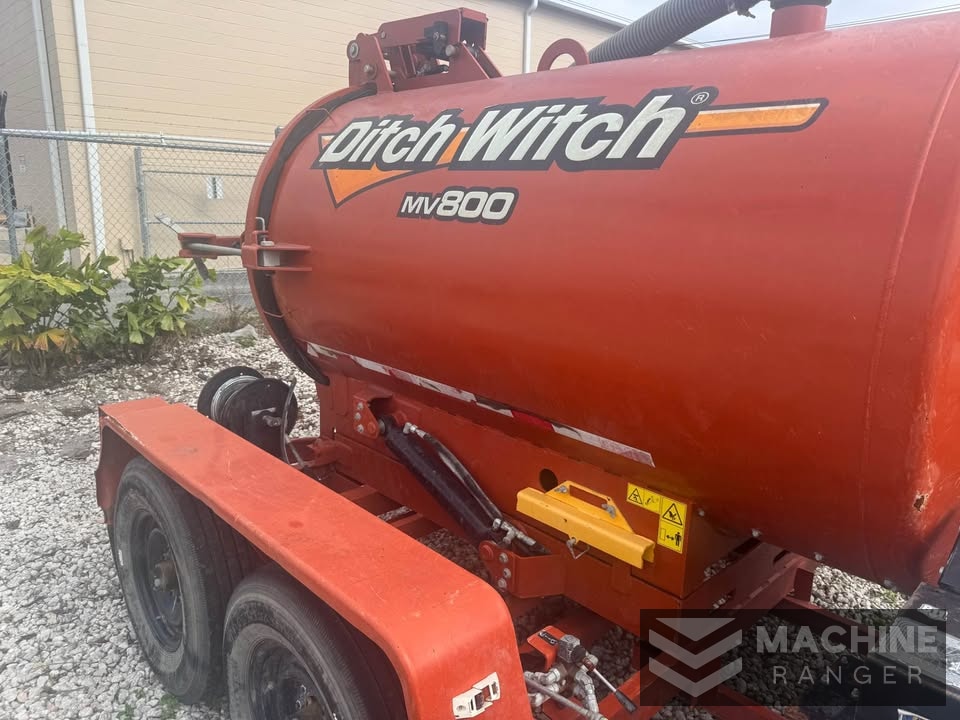

2022 Ditch Witch MV800 Vacuum Excavator — 800-Gallon Trailer Vac Overview Description Clean, low-hour 2022 Ditch Witch MV800 trailer-mounted vacuum excavation unit. Engineered explicitly for quick horizontal directional drilling (HDD) fluid cleanup, hydro-excavation, potholing utilities, and jobsite washdowns. This compact, easy-to-operate setup runs on a dependable 31 HP Briggs & Stratton Vanguard gas engine, delivering powerful suction performance inside a heavily ruggedized frame. Mounted on a factory-matched, heavy-duty 14,000-lb GVWR tandem-axle trailer that is fully highway-ready. Excellent addition to any utility, municipal, or directional drilling fleet. Located [City, State/Region]. Freight assistance and third-party inspections available upon request. Key Features & Machine Configuration • Optimized Capacity: Features a heavy-duty 800-gallon spoils tank, making it the perfect size to handle drilling fluid volumes without forcing constant dump trips. • Commercial Gas Engine: Powered by a 31 HP Briggs & Stratton Vanguard engine with reliable electric start and an integrated remote air-intake filter to maximize engine life on dusty job sites. • Integrated Water System: Equipped with a 100-gallon onboard water tank and a high-pressure pump pushing up to 3,000 PSI for soft excavation, slot trenching, and utility exposing. • Advanced Filtration: Built-in multi-stage filtration system featuring a reusable, washable polyester filter element and a dedicated carryover chamber to protect the blower from fine dust and wet debris. • Single-Operator Safety Controls: Standard curbside operational controls enable safe, simple, one-person control over all unit and tank dump functions away from moving traffic. • Towing Package: Shipped on a fully FMVSS-compliant, 14,000-lb GVWR pintle/ball trailer equipped with heavy impact guards, mechanical lift cylinder safety locks, and high-visibility markings.
Technical Specifications • Tank Capacities: 800 gal Spoils Tank | 100 gal High-Pressure Water Tank • Trailer GVWR: 14,000 lbs (6,350 kg) • Empty Weight: 4,995 lbs (Base unit empty) | 5,590 lbs (Fully optioned empty) • Dimensions: 208" Length | 96.5" Width | 91.5" Height • Engine: Briggs & Stratton Vanguard | 2-Cylinder | 31 HP Gross | Gasoline • Vacuum System (Blower): 2-Lobe belt-driven displacement blower pushing 543 CFM • Maximum Vacuum Pull: 15 in Hg (381 mm Hg) • High-Pressure Water Pump: 4 GPM flow rate @ 3,000 PSI max pressure • Hose Configuration: 25-foot, 3-inch standard high-suction vacuum hose with locking reel setup for the 50-foot water line • Tank Dump: Hydraulic twin-cylinder lift with a 45° maximum dump angle • Valves: 4" Tank Inlet Valve | 6" Tank Outlet Valve • Electrical/Hydraulic System: 12V DC power pack with automatic thermal protection overload switches
Can I review inspection photos and a condition report before I buy?
Yes. Listings include detailed photos and, when available, an inspection or condition summary so you can see wear, leaks, undercarriage, and cab condition. Ask your representative for the latest meter reading and any service records the seller can provide—hours and condition are often verified at listing time but can change.
Do you arrange shipping or delivery?
Shipping and logistics are often available nationwide through vetted transport partners. Cost depends on distance, dimensions, weight, and whether the machine is running and load-ready. Your sales representative can quote options and timing; pickup at the equipment location may also be arranged where allowed.
How accurate is the hour meter, and can I verify it?
Published hours reflect the last reported reading on the machine or in available documentation. Meters can be replaced or incorrect; we recommend confirming hours with your own inspection or a qualified technician before purchase. Ask whether an ECM or telematics readout is available for your unit.
Is the machine sold as-is, and is there a warranty?
Used heavy equipment is often sold as-is, where-is, unless a separate written warranty or service plan is offered on your specific deal. Remaining manufacturer or extended coverage, if any, may be transferable—confirm in writing. Always review the purchase agreement and inspection terms before committing.
What paperwork should I expect (title, lien release, export)?
Expect a bill of sale and any title or ownership documents required in your state or country. If the unit was financed, ensure lien release is documented. For export, additional customs, EPA, or certification paperwork may apply—your representative can flag what is needed for your destination.
