2013 Ditch Witch RT80

📍 TX, USAStock #:EQ000465Show on map
Share

600 hrs

Trenchers

Used

Has AC

No

Has Heat

No

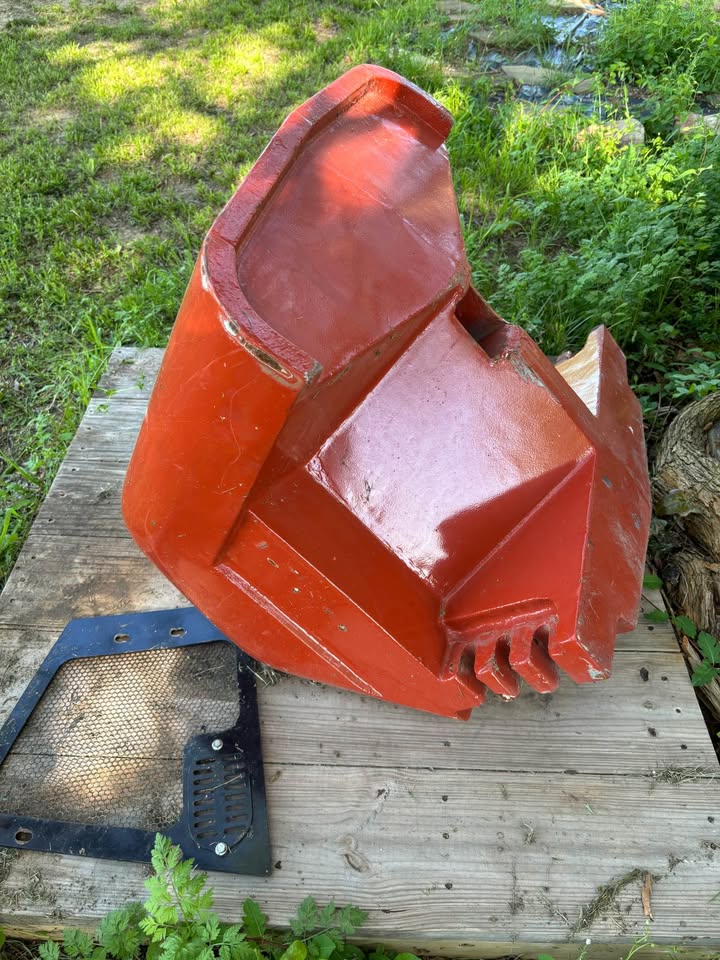

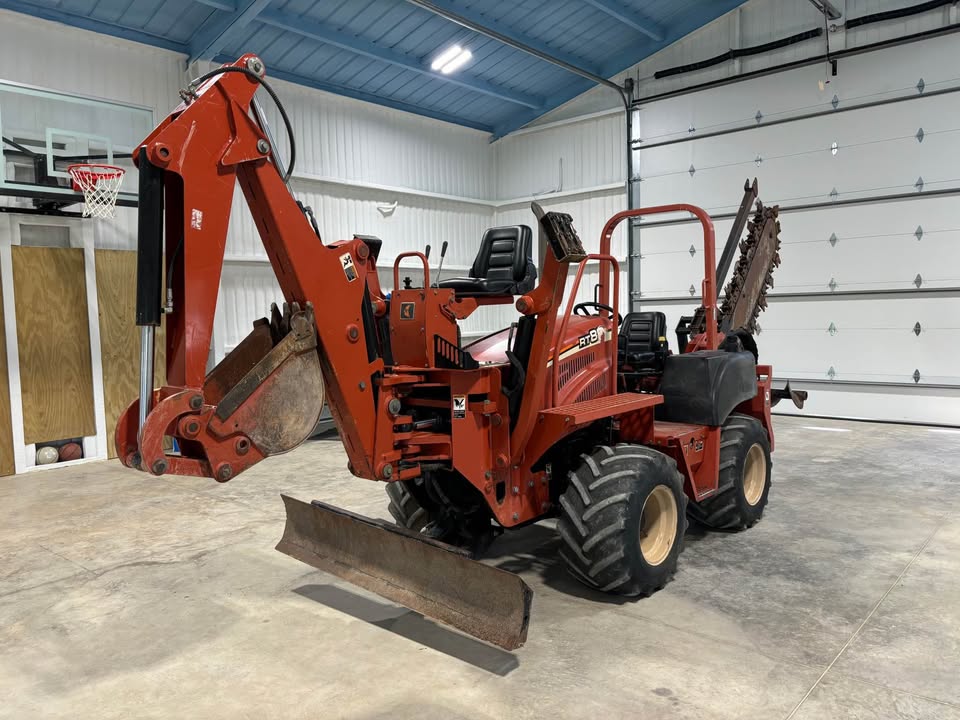

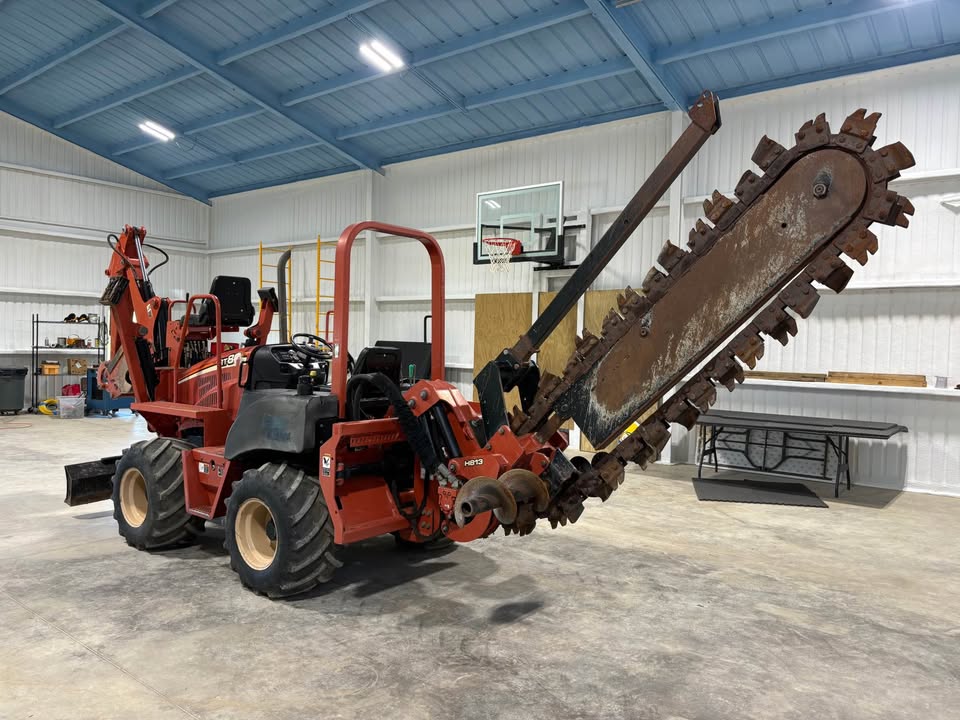

2013 Ditch Witch RT80 with under 600 hours, in excellent condition. This versatile machine is built for serious trenching and excavation, featuring the H813 trencher (6" wide, up to 7' deep) and the A523 backhoe with a 12" bucket. A front counterweight is included for added stability when the backhoe is removed.

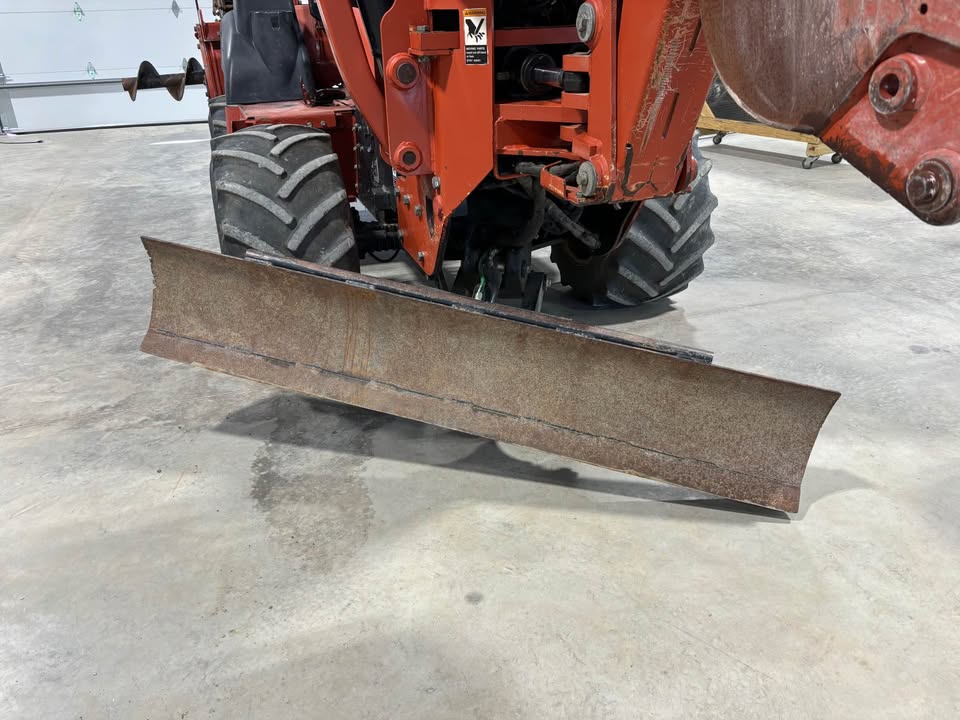

Powered by a robust 74.5 HP turbocharged Deutz T3 Flex diesel engine, this unit handles heavy-duty trenching and vibratory plowing with ease. The backhoe pedestal seat offers precise control, including throttle, low-speed forward/reverse, and full backfill blade articulation (up/down, tilt, and yaw).

Exceptionally maintained, with all service completed by Ditch Witch, most recently in January 2025. Service records and the operator’s manual are included. This RT80 is a true workhorse—capable of cutting through deep roots effortlessly and outperforming even the largest rental trenchers.

Engine:

  • Model: Deutz T3 Flex
  • Power: 74.5 HP (55.5 kW)
  • Type: Turbocharged diesel

Dimensions:

  • Length (transport): 139 inches (3,530 mm)
  • Width: 90 inches (2,286 mm)
  • Height: 103 inches (2,616 mm)
  • Wheelbase: 63 inches (1,600 mm)
  • Ground clearance: 15.3 inches (387 mm)

Weight:

  • Base unit: 11,580 lbs (5,253 kg)
  • Maximum allowable weight (2-post): 19,100 lbs (8,864 kg)

Trenching System:

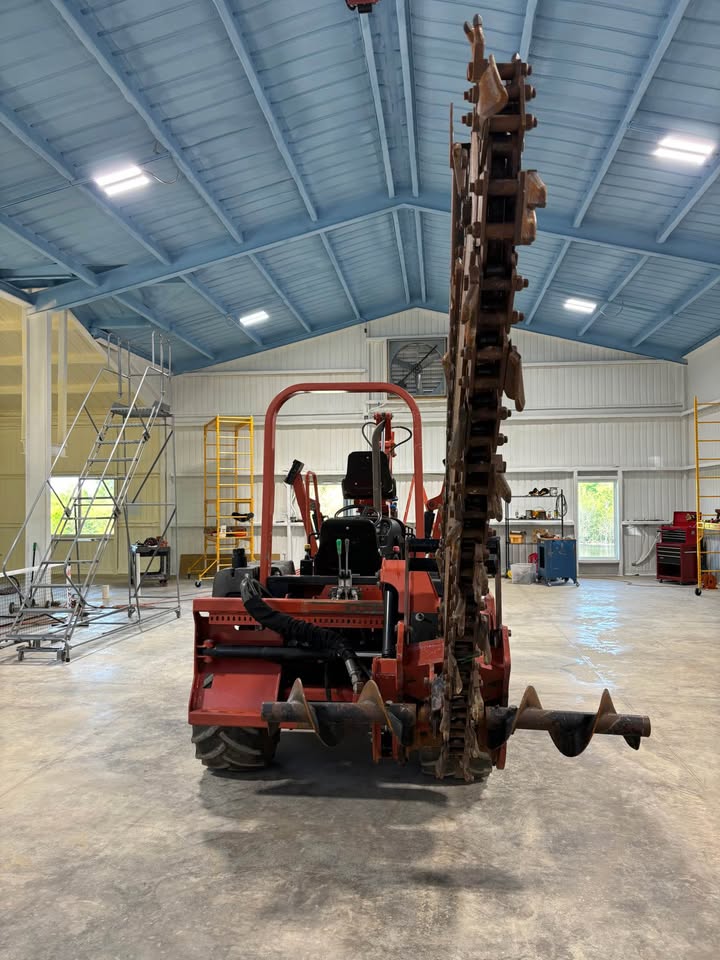

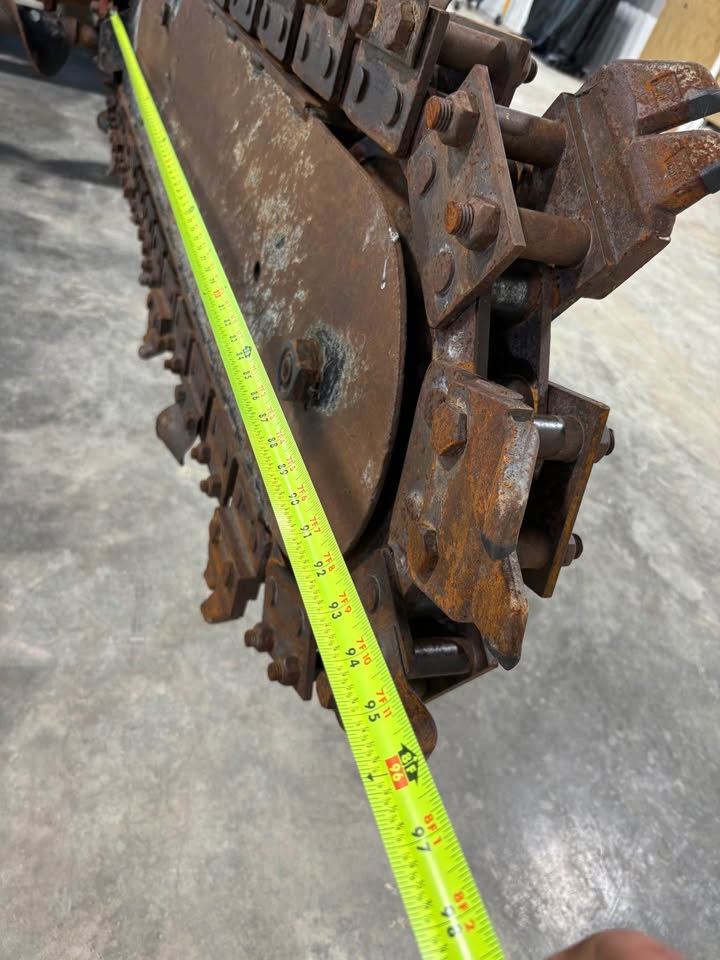

  • Trencher model: H813
  • Width: 6 inches (152 mm)
  • Depth: Up to 7 feet (2,134 mm)

Backhoe System:

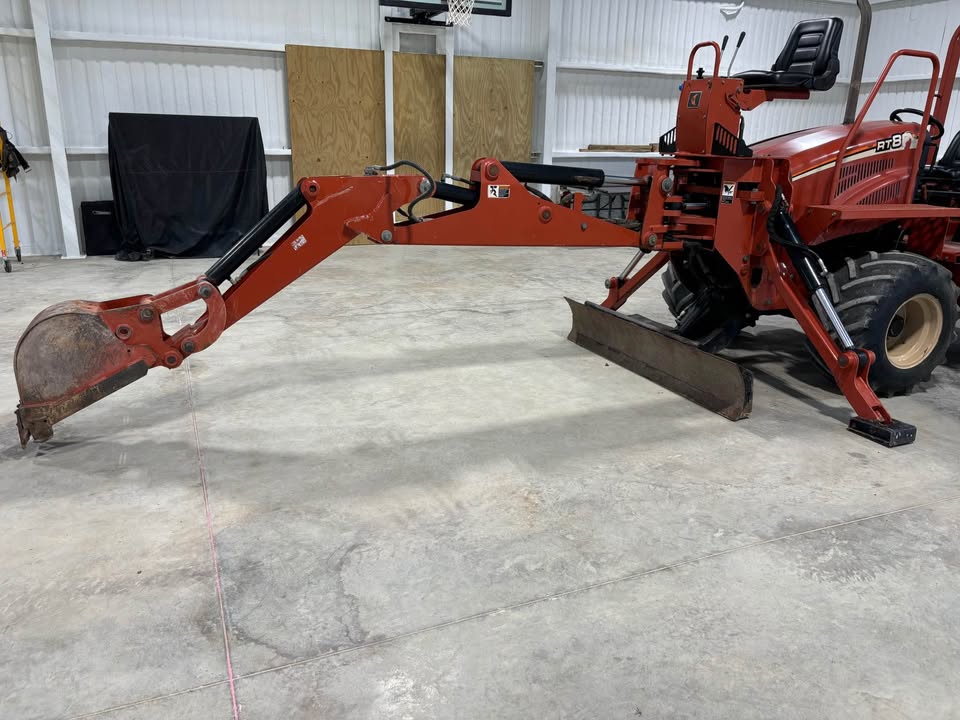

  • Backhoe model: A523
  • Bucket width: 12 inches (305 mm)

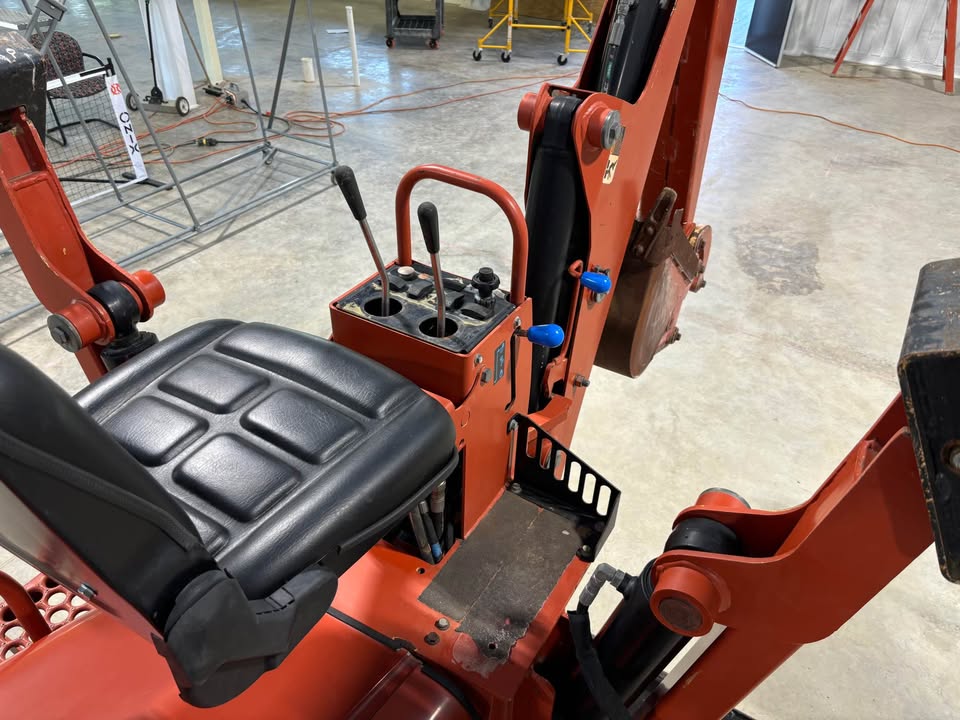

  • Controls: Pedestal seat with throttle, low-speed forward/reverse, and full backfill blade articulation (up/down, tilt, yaw)

Drive System:

  • Transmission: Three-speed, shift-on-the-fly ground drive (forward and reverse)
  • Tracks: Quad Track System with chevron-pattern tread for maximum traction and stability

Steering:

  • Front steer only: 33.5 ft (10.2 m) clearance circle (SAE wall to wall with backfill blade)
  • Front and rear steer: 21.5 ft (6.5 m) clearance circle

Operator Station:

  • Seat: 90° swivel, adjustable height

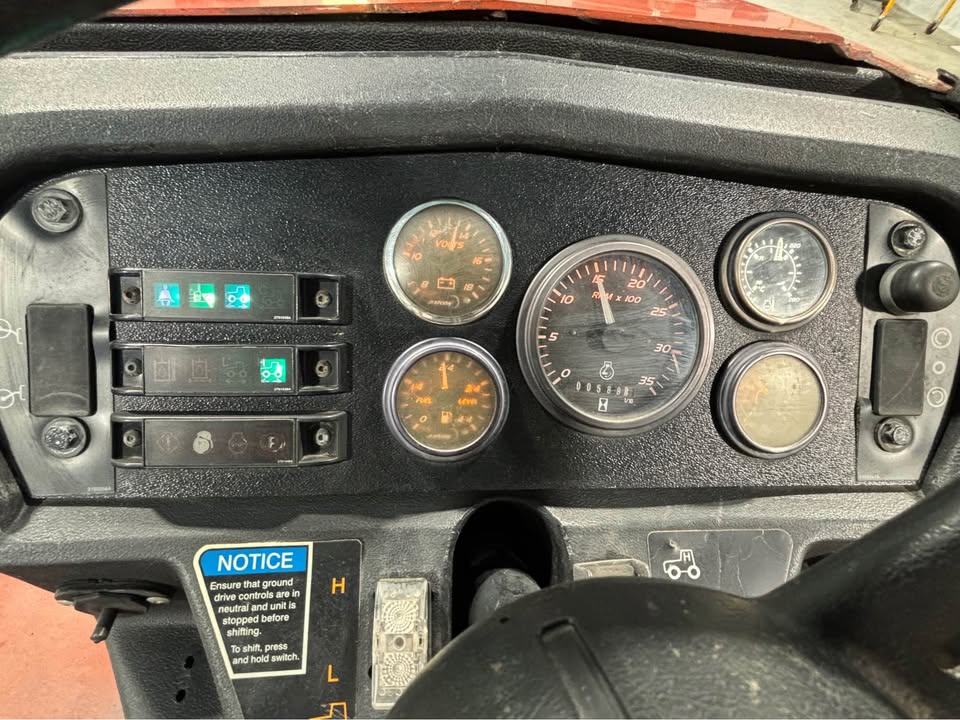

  • Controls: Easy-to-read gauge panel, ergonomic layout for operator comfort

Fuel System:

  • Tank capacity: 30 gallons (114 liters)

Additional Features:

  • Cooling system: Advanced design to maintain optimal engine temperature
  • Maintenance: Removable side panels for easy access to engine compartment
  • Logistics coordination when applicable
  • Shipping available
  • Inspection report available
  • Dedicated sales agent
