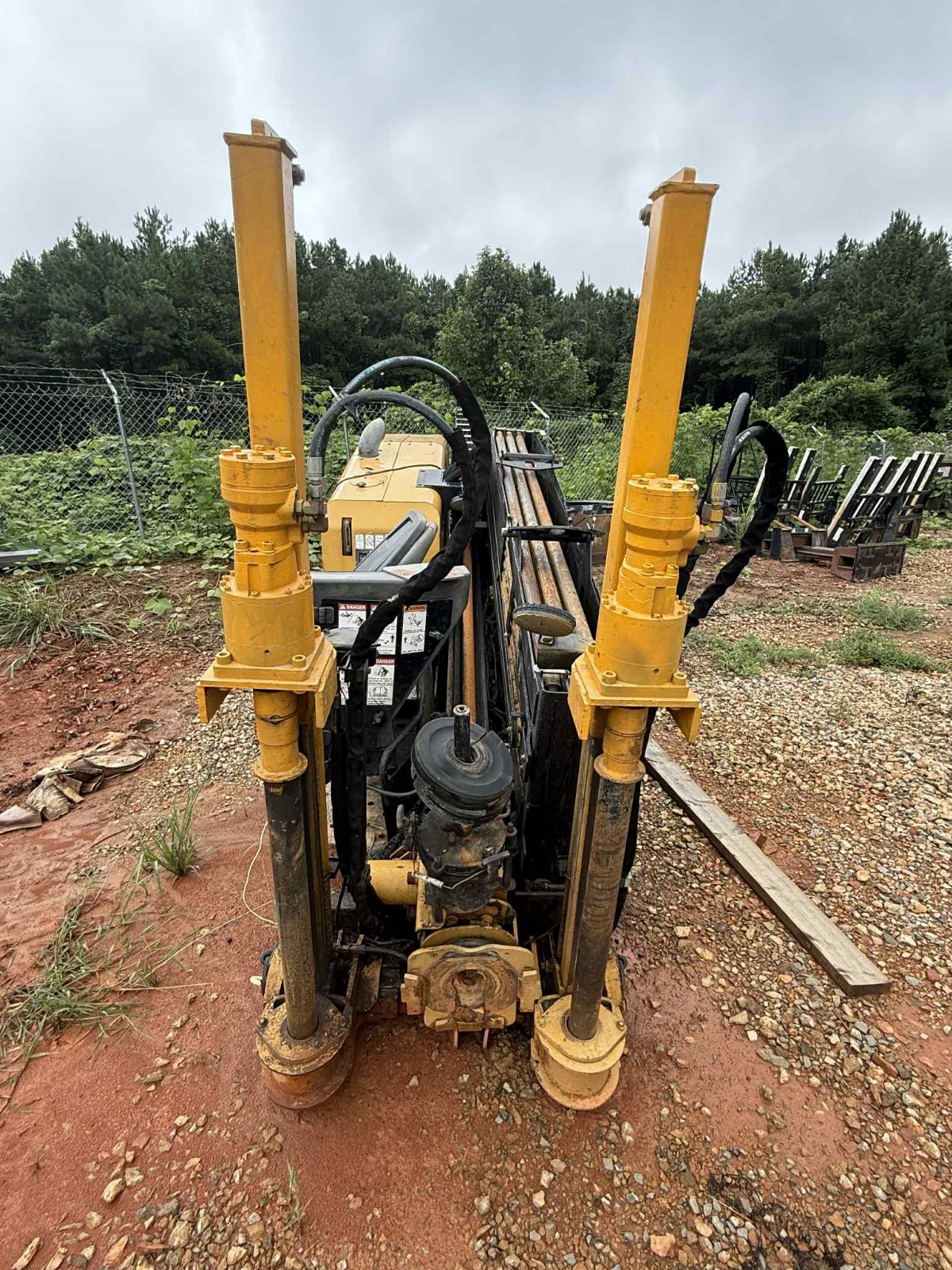

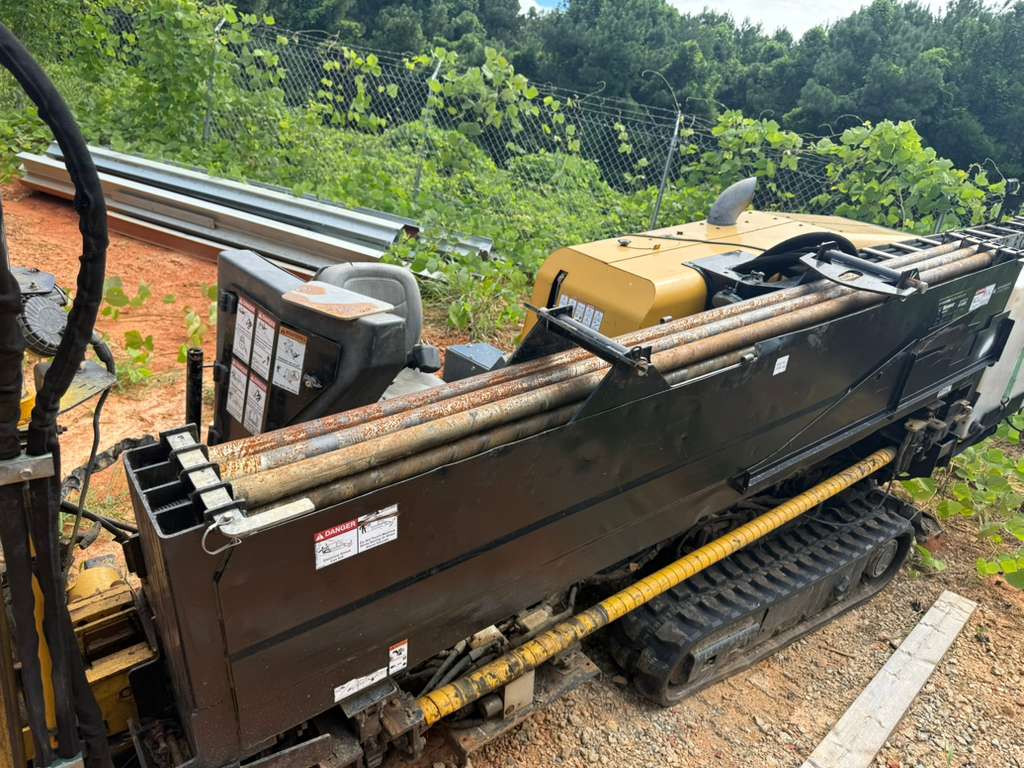

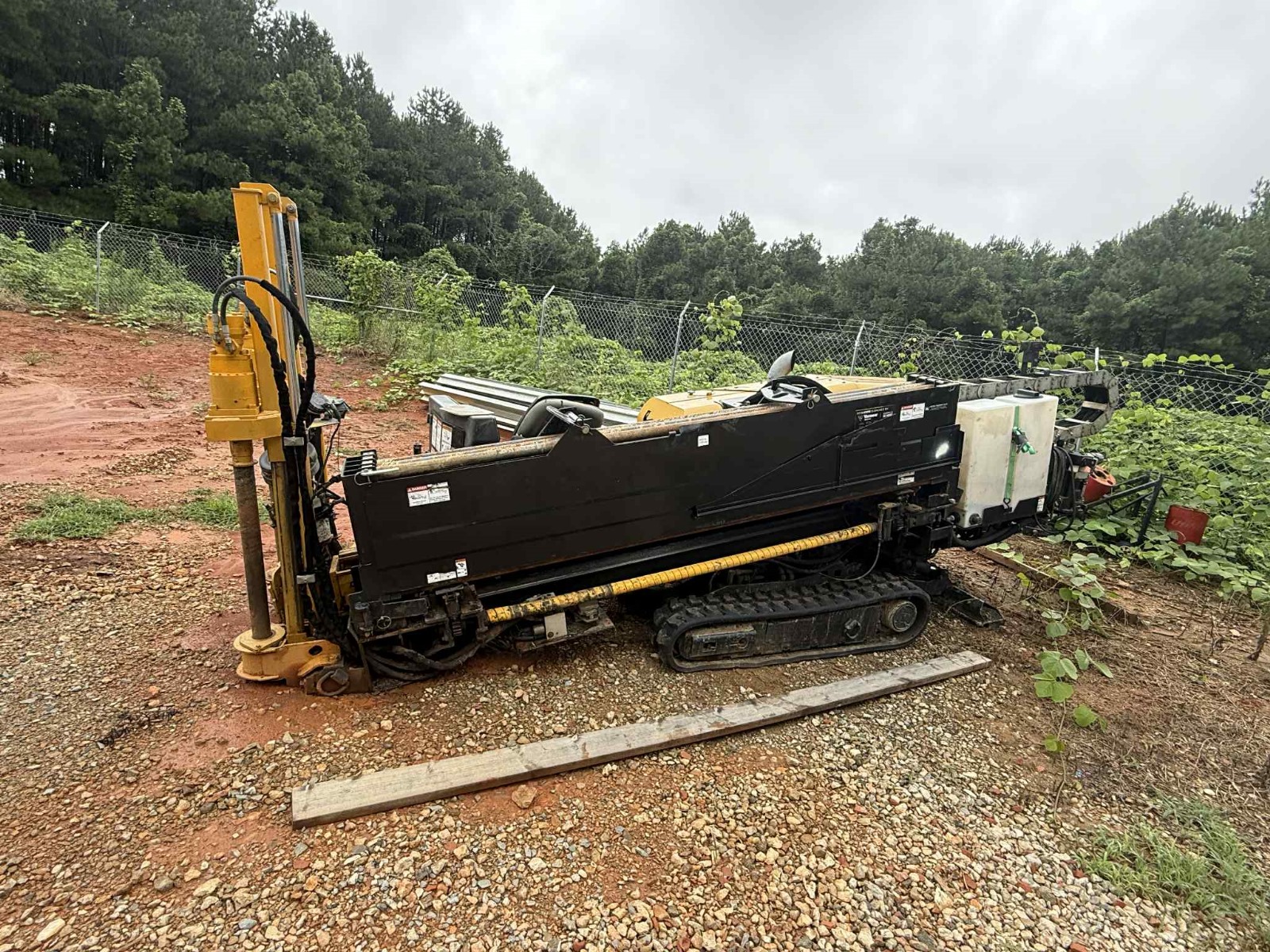

2016 Vermeer D20X22S3 Package: This 2016 Vermeer D20x22S3 package is a reliable solution for utility installation with 3000 hours of use. The compact, powerful directional drill features a Tier 4 Deutz engine, providing 19,500 lbs of thrust and pullback, and a class-leading 167 ft/min carriage speed.

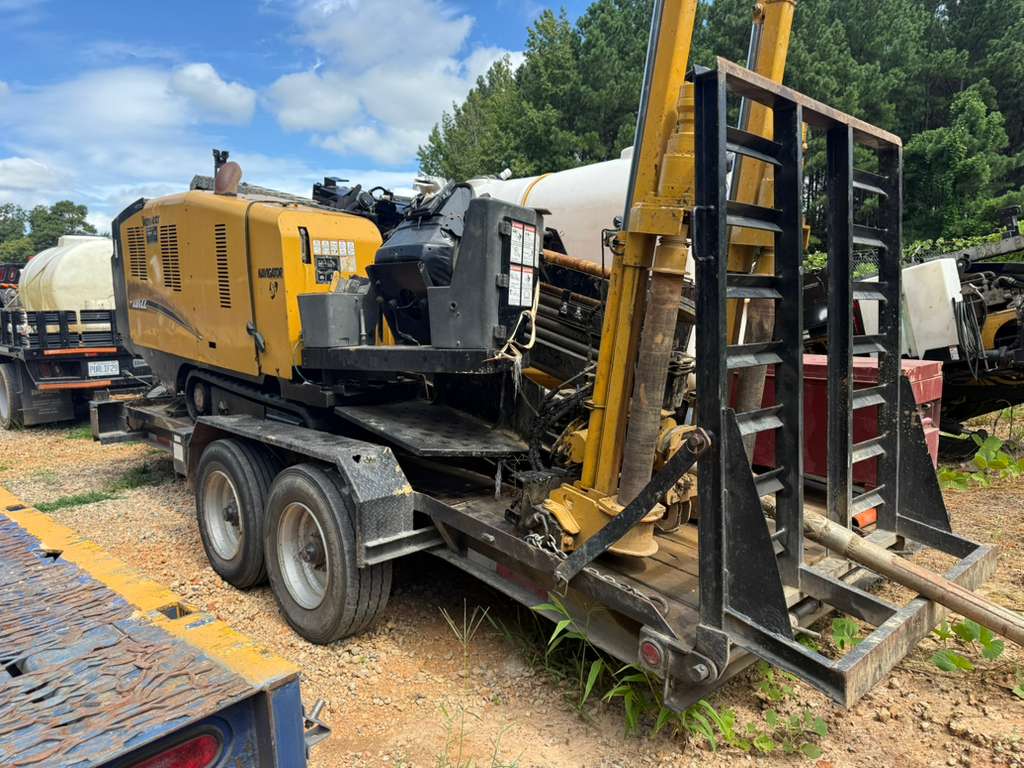

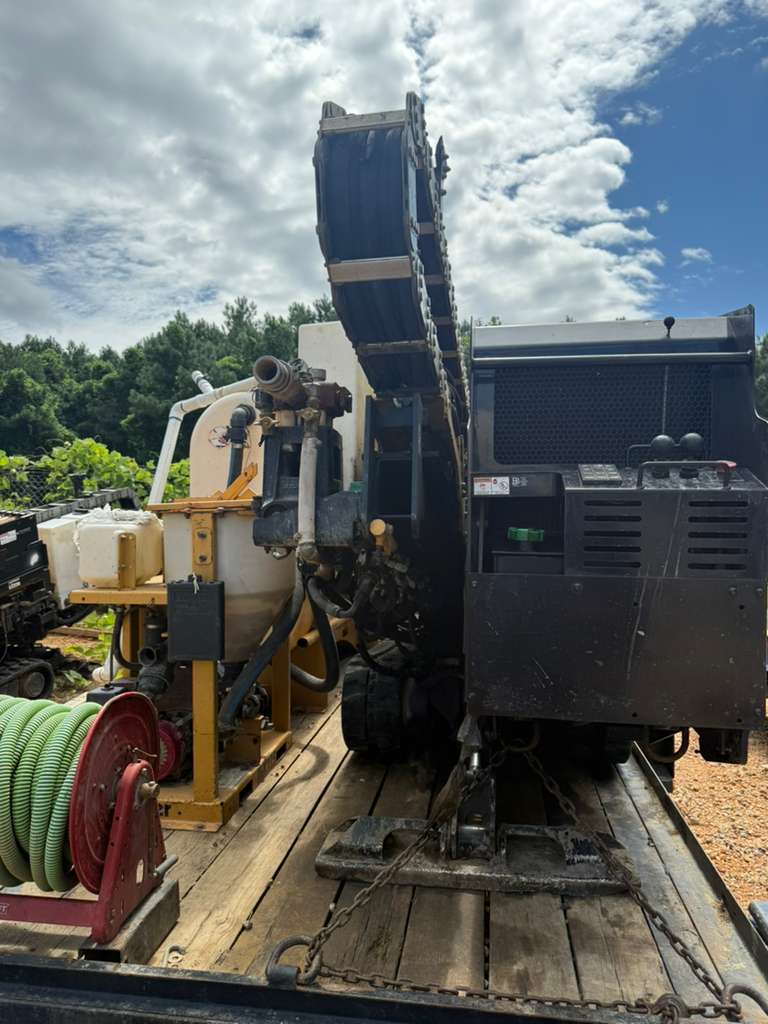

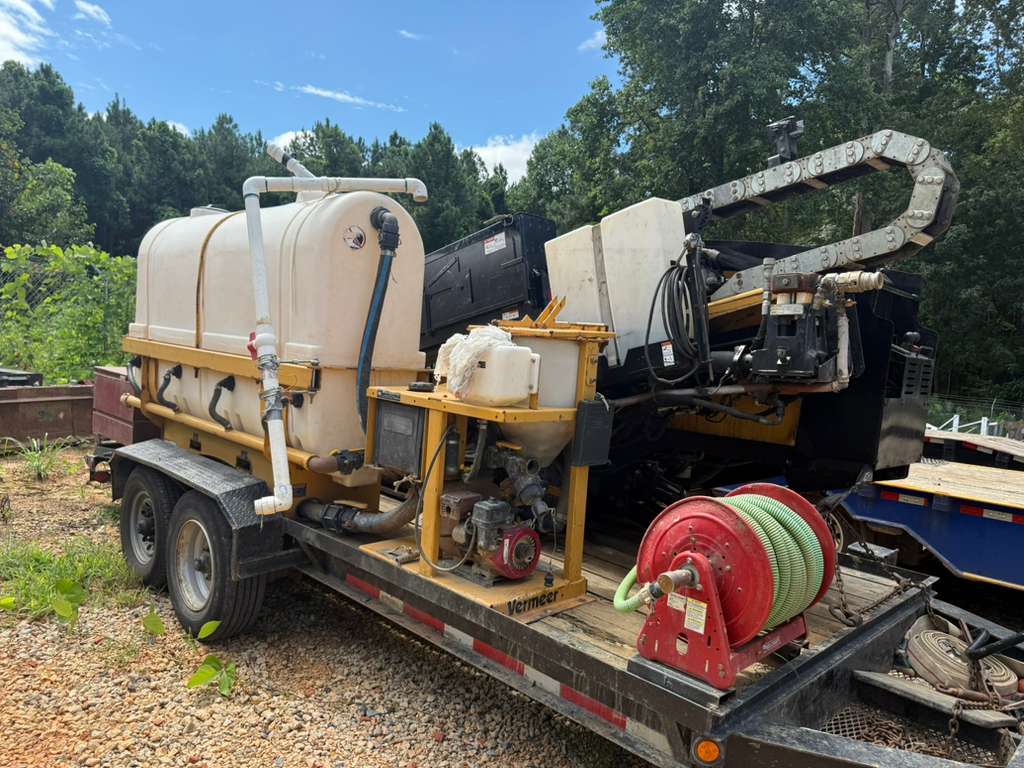

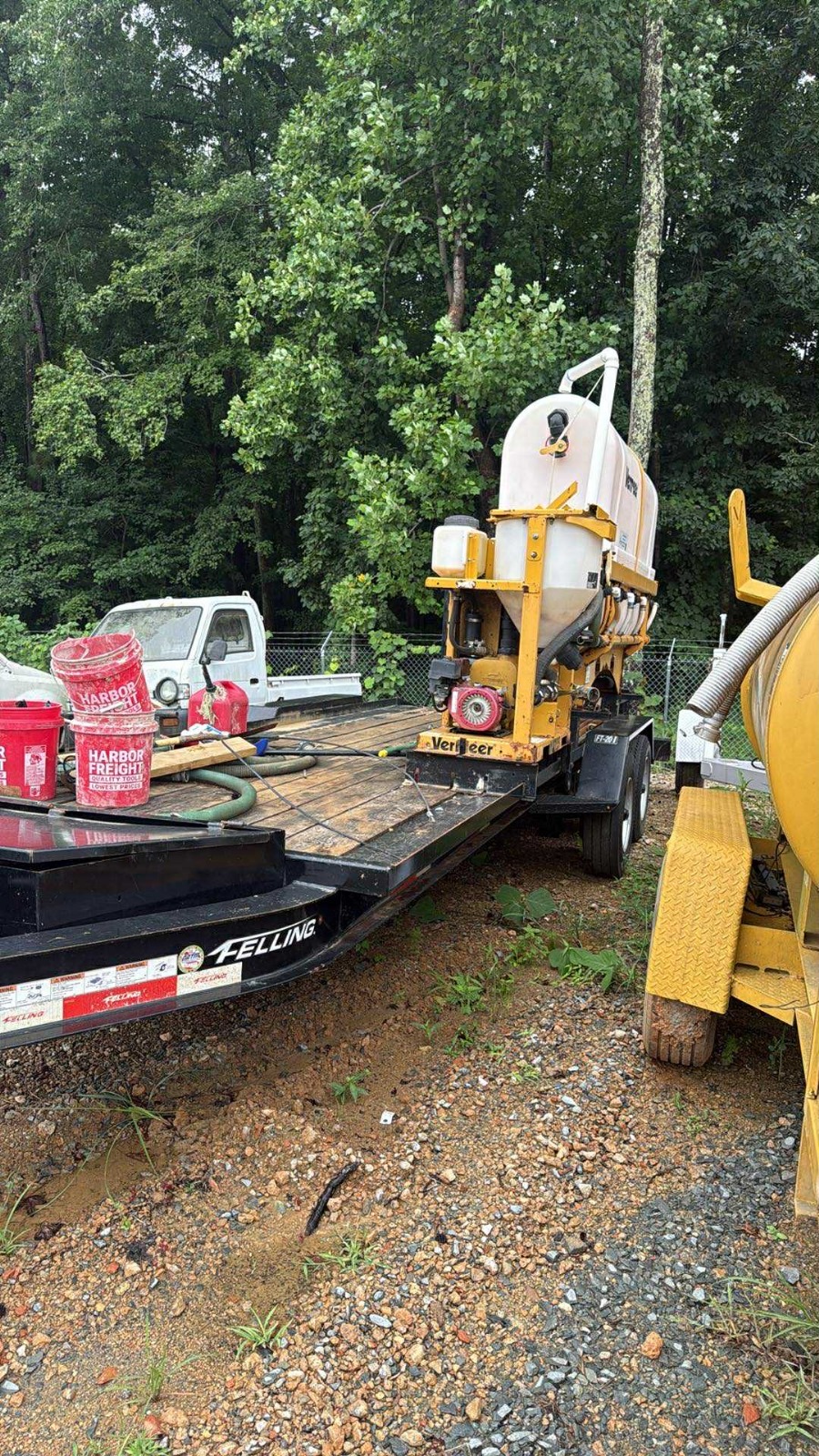

The package includes a custom trailer, mud mixing system, and a Mag8 locator, providing everything you need to start working efficiently.
Manufacturer's Specs
Operational
Thrust/Pullback: 19,500 lbs (86.7 kN)
Maximum Spindle Torque (Low): 2250 ft-lb (3050.6 Nm)
Maximum Spindle Speed: 257 rpm
Maximum Carriage Speed: 167 ft/min (50.9 m/min)
Minimum Bore Diameter: 3 in (7.6 cm)
Drill Rack Angle: 17°
Automated Rod Loader: Semi-automated
Drilling Fluid System
Dimensions & Weights
Length (Min Transport): 204 in (518.2 cm)
Width (Min Transport): 47.5 in (120.7 cm)
Height (Min Transport): 74 in (188 cm)
Weight: 10,850 lbs (4921.5 kg)
Additional Features
Standard hydraulic vice breakout system
Standard flow indicator, stakedown system, strike alert, and remote lockout
Optional drilling lights
