5,145 hrs
125 HP
Horizontal Directional Drill
Tracks
—
Used
0 lbs
45 gal
Has AC
No
Has Heat
No
Horsepower
125 HP
Engine model
John Deere 4045, ultra low sulfur diesel
Engine manufacturer
John Deere
Width
0 in
Height
0 in
Length
0 in
Fuel capacity
45 gal
Undercarriage
Tracks
Track or wheel
Tracks
Operating weight
0 lbs

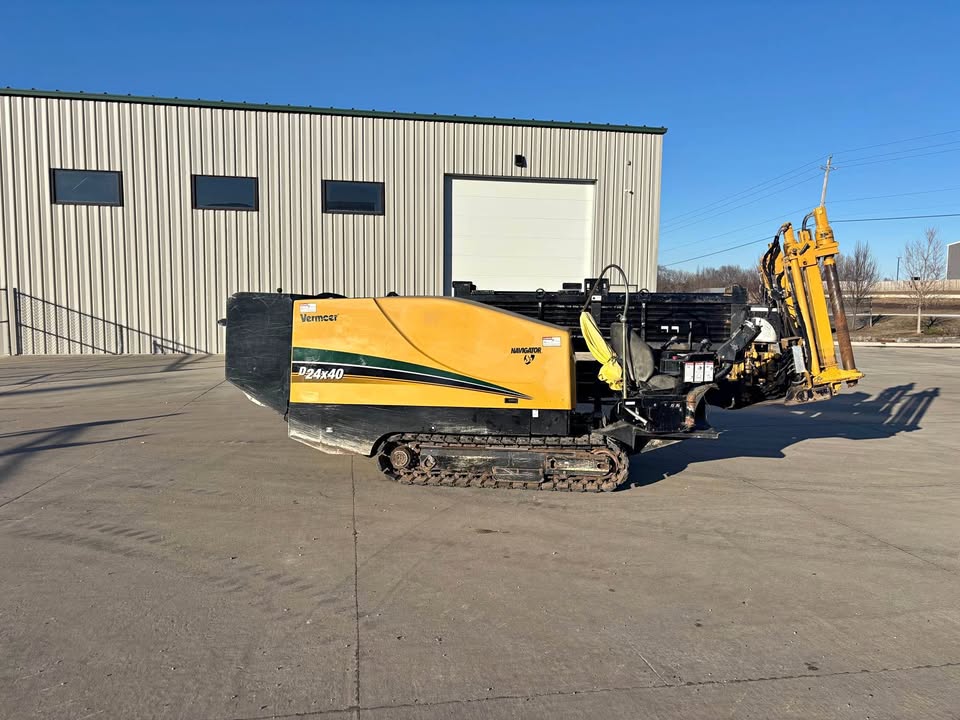

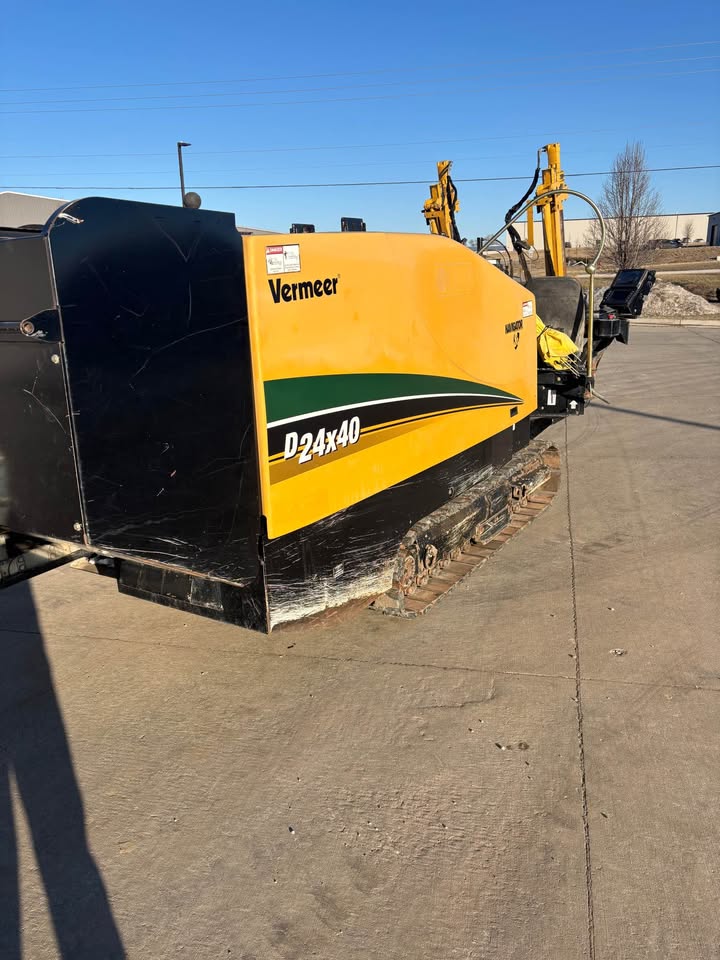

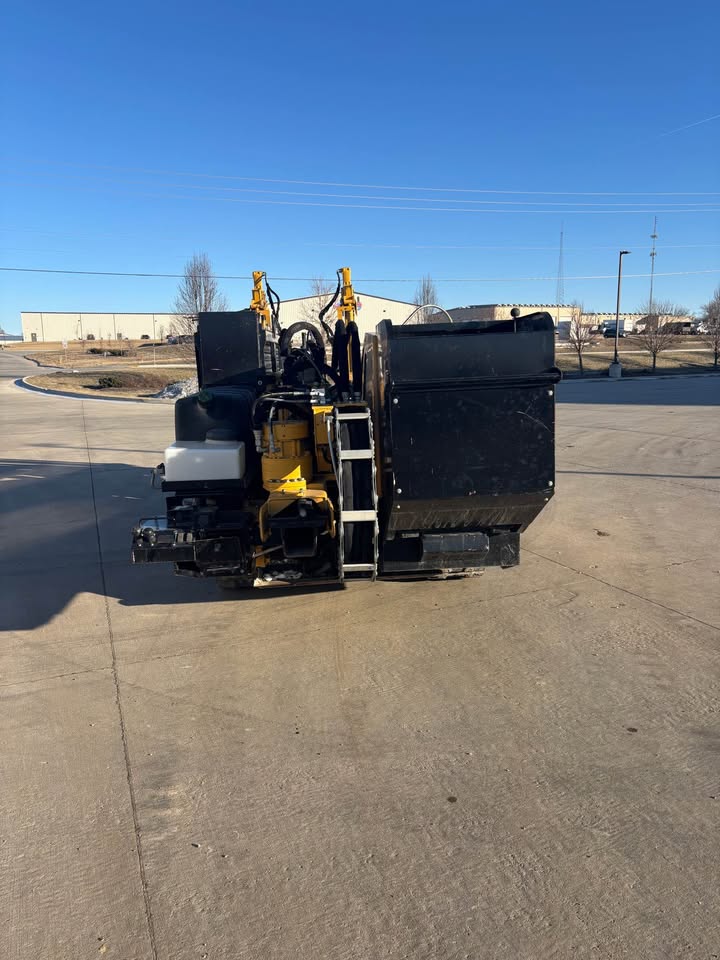

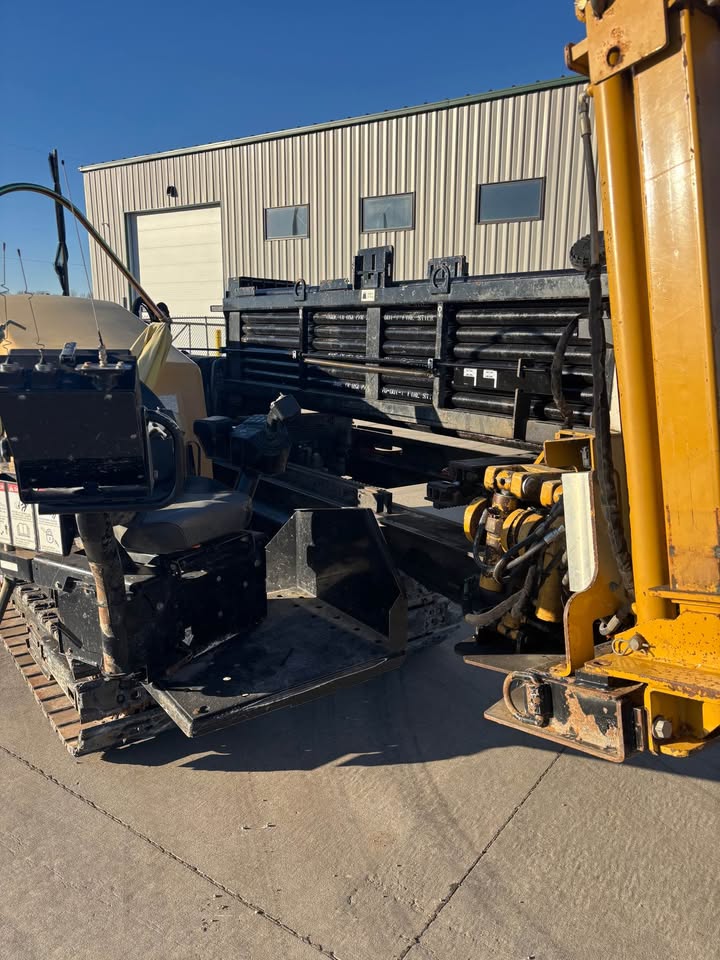

2016 Vermeer 24x40 S3 Horizontal Directional Drill
Manufacturer: Vermeer Model: 24x40 S3 Year: 2016 Machine Type: Horizontal Directional Drill Hours: 5,145
Condition: Used – Shop Inspected & Work Ready
DESCRIPTION For sale is a clean, well-maintained 2016 Vermeer 24x40 S3 HDD with 5,145 hours. This unit has been through Vermeer Iowa’s shop and is fully inspected, serviced, and ready to go straight to the jobsite. The machine comes equipped with 500 feet of brand-new 2.375” Fire Stick drill rods, providing immediate boring capability without additional rod investment. Undercarriage and rubber tracks are in great condition, offering excellent traction and stability. This drill represents a strong turnkey option for contractors looking for a reliable mid-size directional drill with solid power and torque performance.
PERFORMANCE SPECS Max Thrust: 24,000 lbs Max Pullback: 24,000 lbs Max Spindle Torque: 4,200 ft-lbs Max Spindle Speed: 225 rpm Carriage Speed (Max): Approx. 120 fpm Engine Make: John Deere Engine Model: 4045 (Tier 4 Final) Engine Horsepower: 125 HP Fuel Type: Diesel

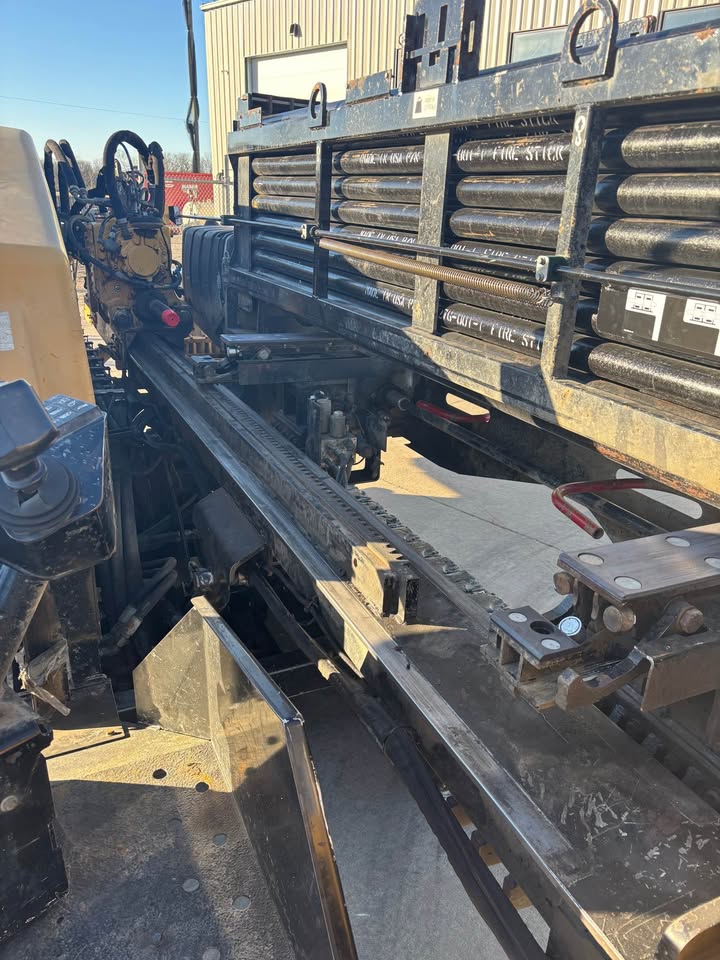

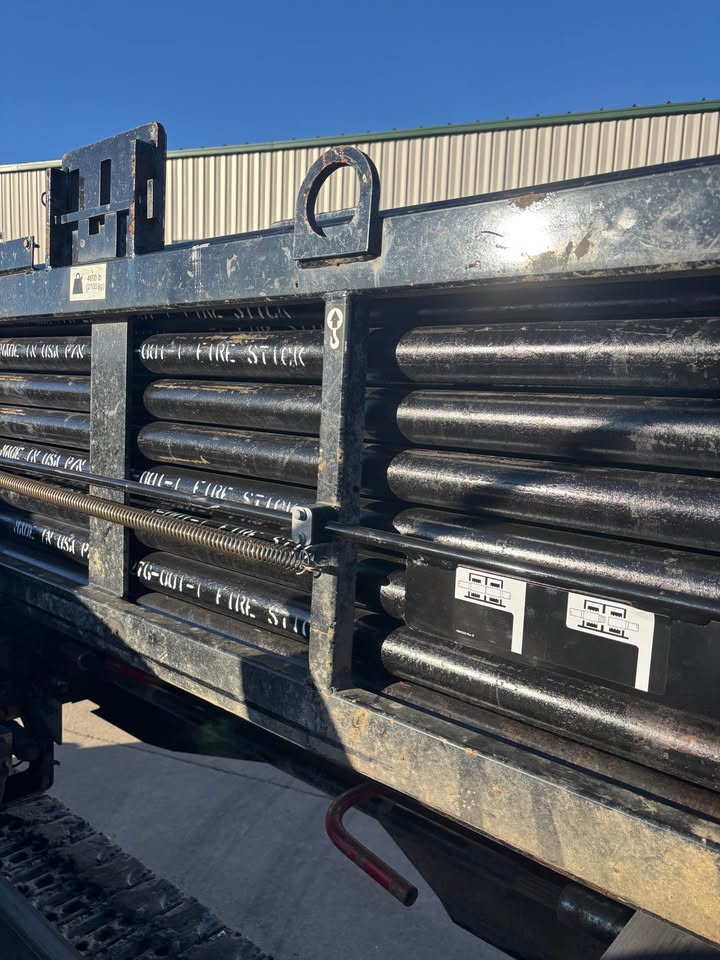

DRILL PIPE SPECIFICATIONS Rod Diameter: 2.375” (Fire Stick – NEW) Total Rods Included: Approx. 500 ft (confirm exact rod count) Rod Length (per rod): 10 ft typical Max Bore Diameter: ~16” (application dependent) Max Bore Length: 500+ ft (standard configuration; expandable with additional rods)

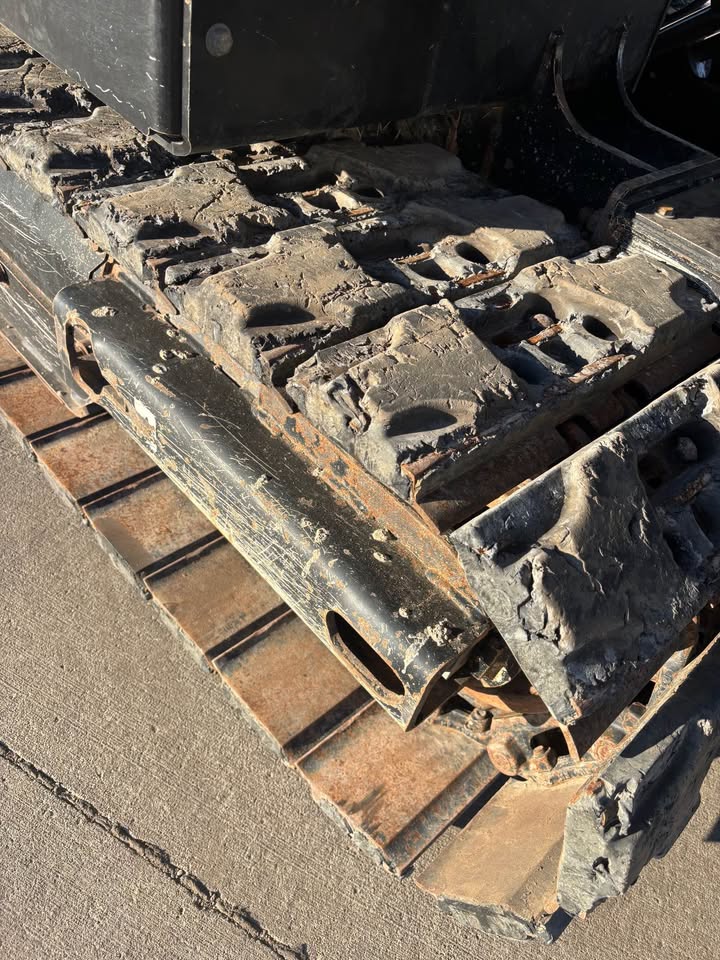

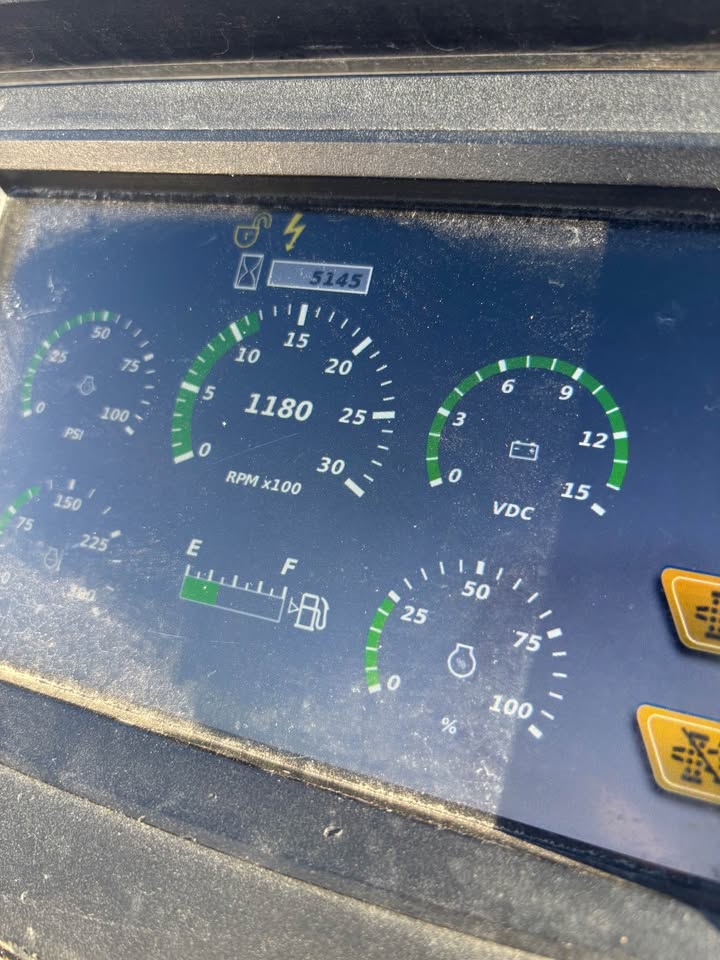

FLUID SYSTEM Drilling Fluid Pump: Onboard high-flow mud pump Flow Rate: Approx. 50–70 gpm (model dependent) Max Pressure: Approx. 1,000 psi FEATURES • S3 platform (improved controls & operator visibility) • LCD display diagnostics • Rack-and-pinion carriage drive • Dual joystick controls • Climate-ready operator station • Heavy-duty anchor system • Rubber tracks in great condition • Fully serviced by authorized Vermeer dealer WHY THIS MACHINE? • Dealer inspected & serviced • Brand new 2.375” rods included (major value add) • Strong mid-size class performance (24K thrust / 4,200 ft-lbs torque) • Ready to mobilize immediately • Excellent contractor-grade machine for utility, fiber, and small pipeline work
Can I review inspection photos and a condition report before I buy?
Yes. Listings include detailed photos and, when available, an inspection or condition summary so you can see wear, leaks, undercarriage, and cab condition. Ask your representative for the latest meter reading and any service records the seller can provide—hours and condition are often verified at listing time but can change.
Do you arrange shipping or delivery?
Shipping and logistics are often available nationwide through vetted transport partners. Cost depends on distance, dimensions, weight, and whether the machine is running and load-ready. Your sales representative can quote options and timing; pickup at the equipment location may also be arranged where allowed.
How accurate is the hour meter, and can I verify it?
Published hours reflect the last reported reading on the machine or in available documentation. Meters can be replaced or incorrect; we recommend confirming hours with your own inspection or a qualified technician before purchase. Ask whether an ECM or telematics readout is available for your unit.
Is the machine sold as-is, and is there a warranty?
Used heavy equipment is often sold as-is, where-is, unless a separate written warranty or service plan is offered on your specific deal. Remaining manufacturer or extended coverage, if any, may be transferable—confirm in writing. Always review the purchase agreement and inspection terms before committing.
What paperwork should I expect (title, lien release, export)?
Expect a bill of sale and any title or ownership documents required in your state or country. If the unit was financed, ensure lien release is documented. For export, additional customs, EPA, or certification paperwork may apply—your representative can flag what is needed for your destination.
Purchase
Apply for financingPricing
Eligible businesses may reduce taxable income faster by depreciating qualifying equipment in the year it is placed in service (rules vary by entity and tax year). This is not tax advice—the figure below is an illustrative savings estimate only; consult your accountant.
💡 Want to see your estimated tax savings and monthly payments?
Status: available
Price excludes taxes, fees, and shipping unless noted. Contact your representative for availability and inspections.
